Description

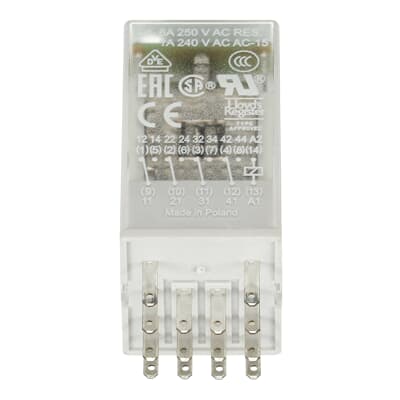

The CR-M024DC4LG pluggable interface relay is a miniature relay with gold-plated contacts, which is to be plugged into a suitable ABB CR-M socket. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Pluggable miniature interface relay CR-M |
|---|---|
| Sub-function | Relay with built in LED and gold-plated contacts |
| Rated control supply voltage Us | 24 V DC |
| Rated operational voltage | 250 V AC |
| Relay output contacts | 4 C/O (SPDT) |
| Output signal rating | 250 V / 6 A |
| Rated insulation voltage | 250 V |
| Degree of protection | IP40 |
| Connection / terminals | Flat-Pin Connections |
| Mounting | DIN Rail (via socket), mounting position 1 |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61810-1 |
| Width | 21.2 mm |
| Depth | 27.5 mm |
| Height | 35.6 mm |
| Net weight | 0.033 kg |
| Utilization AC-12 | (230 V) 6 A |
| Utilization AC-15 | (120 V) 1.5 A; (230 V) 1 A |
| Utilization DC-12 | (24 V) 6 A |
| Utilization DC-13 | (24 V) 2 A; (250 V) 0.1 A |
| EAN | 4013614497971 |
| Customs tariff number | 85364900 |
| Cids | 9AAC100116; 9AAC132577; 9AAC910006 |
| Img1 | 9PAA00000238752_master.jpg (200) |
| Img2 | 9PAA00000238675_master.jpg (200) |
| Img3 | 9PAA00000238700_master.jpg (200) |
| Img4 | 9PAA00000238784_master.jpg (200) |
| Img5 | 9PAA00000238874_master.jpg (200) |
| Img6 | 9PAA00000238809_400x400.jpg (200) |
| Country of origin | Poland |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
