Description

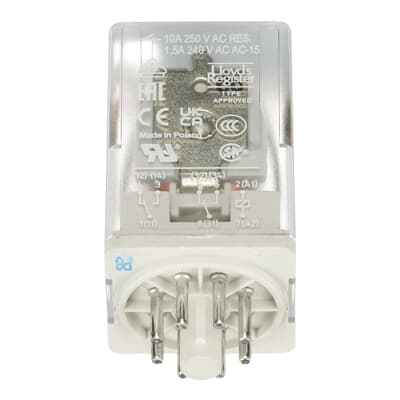

The CR-U230AC2L pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Pluggable universal interface relay CR-U |
|---|---|
| Sub-function | Relay with built in LED |
| Rated control supply voltage (Us) | 230 V AC |
| Rated operational voltage | 250 V AC |
| Rated frequency | 50 / 60 Hz |
| Output | 2 C/O contacts |
| Output signal | 250 V / 10 A |
| Rated operational current AC-12 | 10 A (230 V) |
| Rated operational current AC-15 | 3 A (120 V); 1.5 A (230 V) |
| Rated operational current DC-12 | 10 A (24 V) |
| Rated operational current DC-13 | 2 A (24 V); 0.1 A (250 V) |
| Rated insulation voltage (Ui) | 250 V |
| Degree of protection | IP40 |
| Terminal type | Pin |
| Mounting position | 1 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61810-1, UL 508 |
| Product net width | 35 mm |
| Product net height | 54.4 mm |
| Product net depth / length | 35 mm |
| Product net weight | 0.083 kg |
| EAN | 4013614498428 |
| Country of origin | Poland |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
