Description

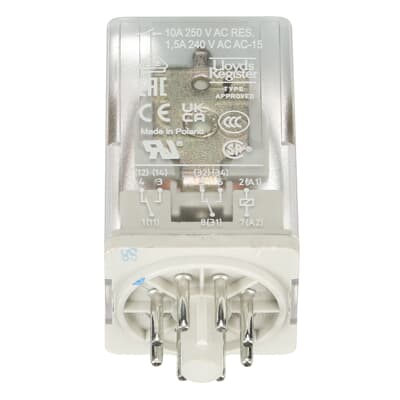

Pluggable universal interface relay with circular pin terminals, snap-on DIN Rail mounting via CR-U sockets, 110 V AC coil, 2 C/O contacts at 250 V / 10 A, a test button for manual actuation, and an integrated LED for coil energization indication. Accessories include standard and logic sockets, function modules, holders and markers. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Pluggable universal interface relay CR-U |
|---|---|
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 110 V AC |
| Rated Operational Voltage | 250 V AC |
| Rated Frequency (f) | 50 / 60 Hz |
| Output | 2 C/O Contacts |
| Output Signal | 250 V / 10 A |
| Rated Operational Current AC-12 (Ie) | (230 V) 10 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A / (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 10 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A / (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 |
| Terminal Type | Pin |
| Mounting Position | 1 |
| Standards | row truncated on page, value not captured |
| Product Net Width | 35 mm |
| Product Net Height | 54.4 mm |
| Product Net Depth / Length | 35 mm |
| Product Net Weight | 0.083 kg |
| EAN | 4013614498497 |
| Customs Tariff Number | 85364900 |
| Country of origin | Poland |
| Manufacturer standard delivery time | 60 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
