Description

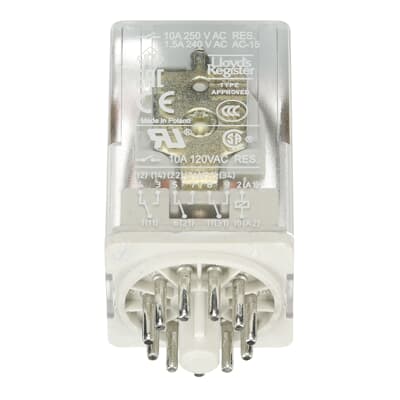

The page describes a pluggable universal interface relay (ice cube relay) that plugs into CR-U sockets and snaps onto DIN Rail. It features robust circular pin terminals for repetitive-use applications. It operates at 110 V AC control supply, with 3 C/O (SPDT) output contacts rated 250 V / 10 A. An integrated test button allows manual actuation by locking output contacts for easy commissioning. An integrated LED indicates coil energization. Standard sockets, logic sockets, pluggable function modules, holders, and markers are listed as available accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Pluggable universal interface relay CR-U |
|---|---|
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 110 V AC |
| Rated Operational Voltage | 250 V AC |
| Rated Frequency (f) | 50 / 60 Hz |
| Output | 3 C/O (SPDT) Contacts |
| Output Signal | 250 V / 10 A |
| Rated Operational Current AC-12 (Ie) | (230 V) 10 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A; (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 10 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A; (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 |
| Terminal Type | Pin |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61810-1; UL 508 |
| Product Net Width | 35 mm |
| Product Net Height | 54.4 mm |
| Product Net Depth / Length | 35 mm |
| Product Net Weight | 0.083 kg |
| EAN | 4013614498701 |
| Customs Tariff Number | 85364900 |
| Country of origin | Poland |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
