Description

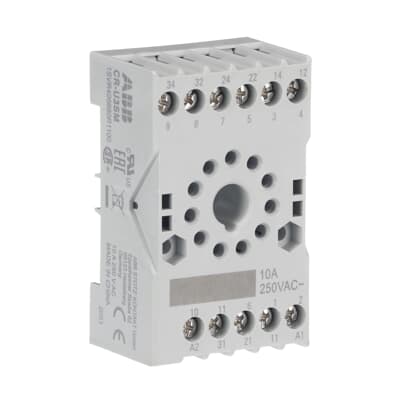

The CR-U3SM socket is from the CR-U (universal) relay range. The small socket is suitable for CR-U relays with 3 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Accessory for interface relays CR-U |
|---|---|
| Sub-Function | Socket for universal relays |
| Sub-Function 2 | Socket small for universal relay 3 c/o |
| Rated Operational Voltage | 250 V |
| Rated Operational Current AC-12 (I<sub>e</sub>) | (230 V) 10 A |
| Rated Insulation Voltage (U<sub>i</sub>) | 2 V |
| Terminal Type | Screw Terminals |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 |
| Ambient Air Temperature | Operation -40 … +70 °C |
| Maximum Operating Altitude Permissible | 2000 m |
| Product Net Width | 38 mm |
| Product Net Height | 24.2 mm |
| Product Net Depth / Length | 68.2 mm |
| Product Net Weight | 0.058 kg |
| EAN | 4013614529016 |
| Customs Tariff Number | 85369010 |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG |
| Flammability According to UL94 | V-0 |
| Country of origin | China |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
