Description

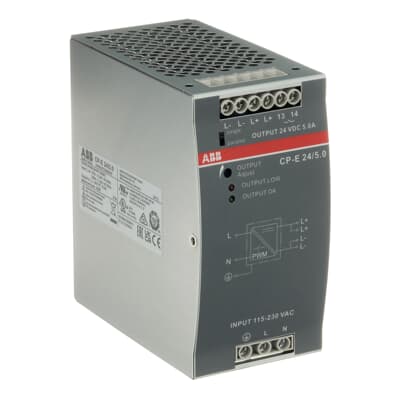

The CP-E 24/5.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Output Voltage | 24 V DC (adjustable 22.5 … 28.5 V DC) |
|---|---|
| Output Current | 5 A |
| Output Power | 120 W |
| Input Voltage Range | 90 … 132 V AC / 180 … 264 V AC / 210 … 375 V DC |
| Rated Input Voltage | 115 or 230 V AC (auto select) |
| Output Characteristic | U/I |
| Product Width | 63.2 mm |
| Product Depth | 123.6 mm |
| Product Height | 123.6 mm |
| Net Weight | 0.882 kg |
| Width | 63.2 mm |
| Depth | 123.6 mm |
| Height | 123.6 mm |
| Weight | 0.882 kg |
| Parallel Operation | up to 3 units, to increase capacity |
| EAN | 4016779669689 |
| Level0Cids | 9AAC910006; 9AAC720001 |
| Customs tariff number | 85044095 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
