Description

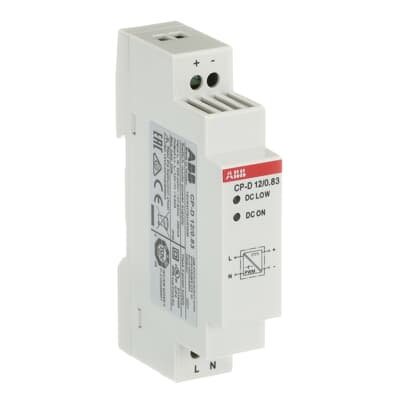

The CP-D 12/0.83 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 10 W, rated output current is 0.83 A at an output voltage of 12 V DC. The power supply provides a U/I output characteristic. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Switch mode power supply |
|---|---|
| Input Voltage (Uin) | 90 … 264 V AC; 120 … 375 V DC |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Frequency Limits | 47 … 63 Hz |
| Characteristic of Output | Hiccup-Mode |
| Rated Output Power | 10 W |
| Output Power | 10 W |
| Rated Output Voltage | 12 V DC |
| Output Voltage (Uout) | 12 V DC |
| Rated Output Current | 0.83 A |
| Output Current | 0.83 A |
| Output Current Maximum (Iout) | 0.83 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 3 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V; Input Circuit / PE 300 V; Output Circuit / PE 50 V |
| Degree of Protection | Housing IP20; Terminals IP20 |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.2 … 1.5 mm²; Rigid 0.2 … 2.5 mm² |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.2 …. 2.5 mm²; Rigid 0.2 … 2.5 mm² |
| Wire Stripping Length | Input Circuit 4 mm; Output Circuit 4 mm |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal 25 mm; Electrical Conductive Board, Vertical 25 mm; Other Device Same Type, Horizontal 25 mm; Other Device Same Type, Vertical 25 mm |
| Product Net Width | 18 mm |
| Product Net Height | 91 mm |
| Product Net Depth / Length | 57.5 mm |
| Product Net Weight | 0.066 kg |
| EAN | 4016779661201 |
| Customs Tariff Number | 85044095 |
| Number of Phases | 1-phase |
| Tightening Torque | Input Circuit 0.6 N·m; Output Circuit 0.6 N·m |
| Recommended Screw Driver | PH1 |
| Not_shown_rows | efficiency, power loss, DC-OK / signal relay contacts, hold-up time, number of outputs, mounting type, ambient operating temperature, applicable standards – the table is cut off after the Minimum Mounting Distance rows on every read |
| Country of origin | Taiwan |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
