Description

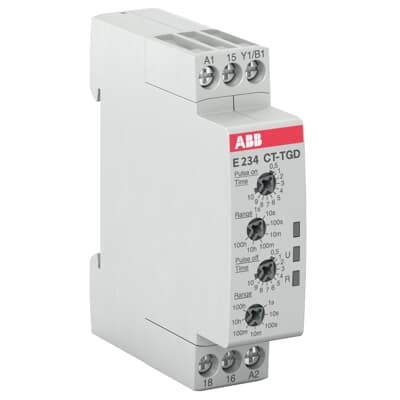

The CT-TGD.12 is a single-function electronic time relay from the CT-D timer range. It provides a pulse generator (recycling unequal times) function with 2×7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 – 48 V DC / 24 – 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 6 A. A control input works with voltage-related (non-floating) triggering. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Time Range | 0.05 s … 100 h |
|---|---|
| Rated Control Supply Voltage (Us) | 24 … 240 V AC; 24 … 48 V DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz; DC |
| Output | 1 C/O (SPDT) Contact |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Degree of Protection | Housing IP50; Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Wire Stripping Length | 7 mm |
| Max Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | C300 |
| Timer Relay Type | Pulse Generator |
| Terminal Type | Screw Terminals |
| Mounting Position | 1 … 6 |
| Mounting on DIN Rail | TH35-15 (35×15 mm) IEC 60715; TH35-7.5 (35×7.5 mm) IEC 60715 |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61812-1; UL 508 |
| Product Net Width | 17.5 mm |
| Product Net Height | 70 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.052 kg |
| EAN | 4013614350696 |
| Customs Tariff Number | 85364900 |
| Short-Circuit Protective Devices | NC – F Type Fuses 6 A; NO – F Type Fuses 10 A |
| Connecting Capacity | Flex 1x 0.5…2.5 mm²; Flex 2x 0.5…1.5 mm²; Rigid 1x 0.5…4 mm²; Rigid 2x 0.5…1.5 mm² |
| Tightening Torque | 0.5 … 0.8 N·m |
| Recommended Screw Driver | 0.8 x 4; Pozidriv 1 |
| Connecting Capacity UL/CSA | Flex 1x 18-14 AWG; Flex 2x 18-16 AWG; Rigid 1x 20-12 AWG; Rigid 2x 20-16 AWG |
| Tightening Torque UL/CSA | 4.43 … 7.08 in·lb |
| Category | CT-D |
| Country of origin | Bulgaria |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
