Description

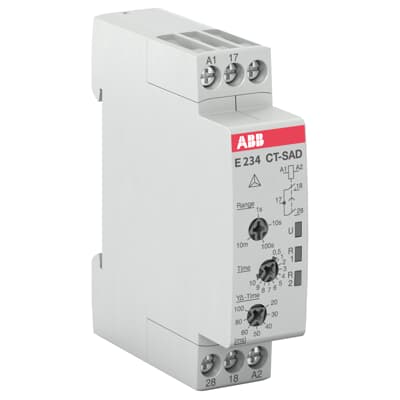

The CT-SAD.22 is a single-function electronic time relay from the CT-D timer range. It provides a star-delta function with 4 time ranges from 0.05 s to 10 min. and a transition time adjustable from 20 ms to 50 ms. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Output | 2 N/O Contacts; 2NOContacts |
|---|---|
| Time range | 0.05 s … 10 min |
| Rated control supply voltage | 24…240 V AC / 24…48 V DC |
| Rated operational voltage | Auxiliary Circuit 250 V |
| Rated operational current AC-12 | (230 V) 5 A |
| Rated operational current AC-15 | (230 V) 3 A |
| Rated operational current DC-12 | (24 V) 5 A |
| Rated operational current DC-13 | (24 V) 2 A |
| Degree of protection | Housing IP50 / Terminals IP20 |
| Mounting | DIN rail TH35-15 and TH35-7.5 |
| Terminal type | Screw Terminals |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61812-1; UL 508 |
| Product net width | 17.5 mm |
| Product net height | 70 mm |
| Product net depth | 63 mm |
| Product net weight | 0.066 kg |
| EAN | 4016779657716 |
| Customs tariff number | 85364900 |
| Transition time | adjustable 20 ms to 50 ms |
| Country of origin | Bulgaria |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
