Description

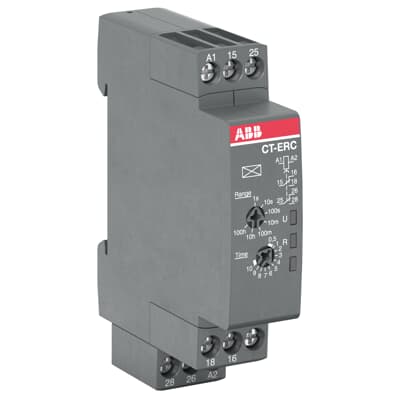

The CT-ERC.22 is a single-function electronic time relay from the CT-C timer range. It provides an ON-delay (delay on make) function with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 – 48 V DC / 24 – 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Time range | 0.05 s … 100 h (7 ranges) |
|---|---|
| Rated control supply voltage | 24 … 240 V AC; 24 … 48 V DC; 50/60 Hz; DC |
| Output | 2 c/o (SPDT) contacts |
| Rated operational voltage (auxiliary circuit) | 250 V |
| Degree of protection | Housing IP50; Terminals IP20 |
| Overvoltage category / pollution degree | III / 3 |
| Timer relay type | ON-delay (delay on make) |
| Terminal type | Screw Terminals |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC 61812-1; UL 508 |
| Ambient air temperature | Operation -20 … +60 C; Storage -40 … +85 C |
| Max operating altitude | 2000 m without derating |
| Product dimensions W/H/D | 17.5 mm x 80 mm x 63 mm |
| Product net weight | 0.068 kg |
| EAN | 4013614534300 |
| Customs tariff number | 85364900 |
| Ie AC-12 (230 v) | 4 A |
| Ie AC-15 (230 v) | 3 A |
| Ie DC-12 (24 v) | 4 A |
| Ie DC-13 (24 v) | 2 A |
| Minimum switching capacity | 12 V / 100 mA |
| Unspsc | 39122329 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 18 x 80 x 63 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
