Description

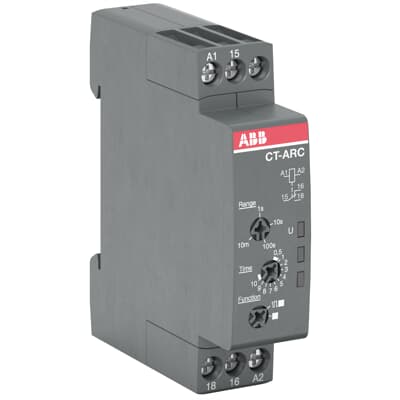

The CT-ARC.12 is a dual-function electronic time relay from the CT-C timer range. It provides an OFF-delay and impulse-OFF functions without auxiliary voltage with 4 time ranges from 0.05 s to 10 min. This time relay operates with a rated control supply voltage of 24 – 48 V DC / 24 – 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Time range | 0.05 s … 10 min (4 ranges) |
|---|---|
| Rated control supply voltage | 24 … 240 V AC; 24 … 48 V DC; 50/60 Hz / DC |
| Output | 1 c/o (SPDT) contact |
| Rated operational voltage (auxiliary circuit) | 250 V |
| Degree of protection | Housing IP50; Terminals IP20 |
| Overvoltage category / pollution degree | III / 3 |
| Timer relay type | OFF-delay (true delay on break) + impulse-OFF, dual function |
| Terminal type | Screw Terminals |
| Product dimensions W/H/D | 17.5 mm / 70 mm / 63 mm |
| Product net weight | 0.053 kg |
| EAN | 4013614555633 |
| Customs tariff number | 85364900 |
| Ie AC-12 (230 v) | 4 A |
| Ie AC-15 (230 v) | 3 A |
| Ie DC-12 (24 v) | 4 A |
| Ie DC-13 (24 v) | 1.5 A |
| Minimum switching capacity | 12 V / 100 mA |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 18 x 70 x 63 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
