Description

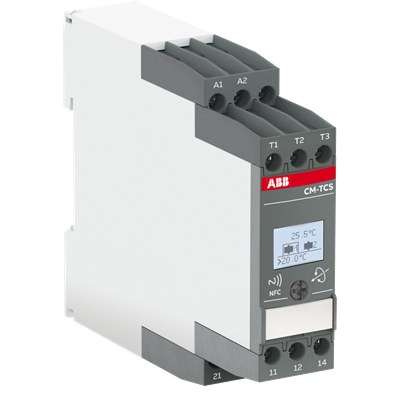

The CM-TCS.011S is an innovative temperature monitoring relay from the CM temperature monitors range. This monitoring relay operates with a rated control supply voltage of 24 – 240 V AC / DC has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. is able to measure temperatures with one sensor circuit using different type of sensors PT100, PT1000, PTC or NTC. The LCD at the front of the relay shows the currently measured value and maintenance data. The CM-TCS.011S can be configured exactly as you need either via a black-lit LCD or smartphone app. Parametrization and configuration are just one touch away with the ABB EPiC app reducing installation time by 80%. The device offers screw connection technology with double-chamber cage connection terminals. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Overtemperature monitoring; Undertemperature monitoring; Over- and undertemperature monitoring |
|---|---|
| Measuring Range | -200 … 850 °C |
| Rated Control Supply Voltage (Us) | 24 … 240 V AC/DC |
| Rated Frequency (f) | Supply Circuit 50 Hz; Supply Circuit 60 Hz; Supply Circuit DC Hz |
| Output | 2x 1 C/O Contacts, Configurable |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 6 kV; Output Circuit 1 / Output Circuit 2 4 kV; Supply Circuit / Measuring Circuit 6 kV; Supply Circuit / Output Circuit 6 kV |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 600 V; Output Circuit 1 / Output Circuit 2 300 V; Supply Circuit / Measuring Circuit 600 V; Supply Circuit / Output Circuit 600 V |
| Degree of Protection | Housing IP50; Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 2 |
| Sensor Type | PT100; PTC; Bimetal Switch; NTC; PT1000 |
| Terminal Type | Screw Terminals |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Product Net Width | 22.5 mm |
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.152 kg |
| Minimum Switching Capacity | 12 V; 100 mA |
| Short-Circuit Protective Devices | Output Circuit NC – F Type Fuses 6 A; Output Circuit NO – F Type Fuses 10 A |
| EAN | 4013614553110 |
| Customs Tariff Number | 85364900 |
| Country of origin | Germany |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
