Description

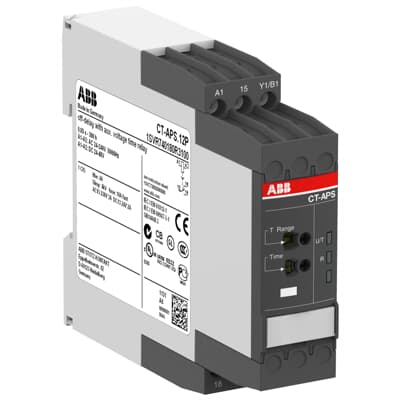

The CT-APS.12P is a single-function electronic time relay from the CT-S timer range. It provides an OFF-delay (delay on break) function with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 – 48 V DC / 24 – 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Time Range | 0.05 s … 300 h |
|---|---|
| Rated Control Supply Voltage (Us) | 24 … 240 V AC; 24 … 48 V DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz; DC |
| Output | 1 C/O (SPDT) Contact; 1 C/O (SPDT) Contact (enumCode:1COSpdtContact) |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV; Output Circuit 1 / Output Circuit 2 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 500 V; Output Circuit 1 / Output Circuit 2 300 V |
| Degree of Protection | Housing IP50; Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Wire Stripping Length | 8 mm |
| Timer Relay Type | OFF-Delay |
| Terminal Type | Screwless Terminals |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Mounting Position | 1 … 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61812-1; UL 508 |
| Product Net Width | 22.5 mm |
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.103 kg |
| EAN | 4016779851725 |
| Customs Tariff Number | 85364900 |
| Minimum Switching Capacity | 12 V; 100 mA |
| Short-Circuit Protective Devices | Output Circuit NC – F Type Fuses 6 A; Output Circuit NO – F Type Fuses 10 A |
| Connecting Capacity | Flexible with Ferrule 2x 0.5 … 1.5 mm2; Flexible with Insulated Ferrule 2x 0.5 … 1.5 mm2; Flexible 2x 0.5 … 1.5 mm2; Rigid 2x 0.5 … 1.5 mm2 |
| Country of origin | Germany |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
