Description

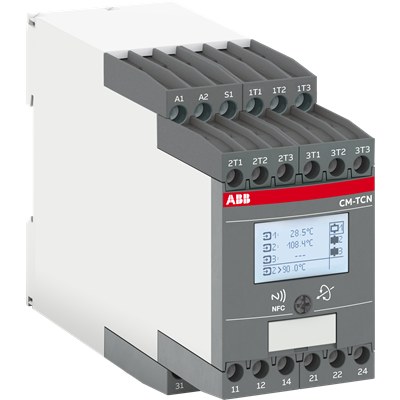

The CM-TCN.012P is an innovative temperature monitoring relay from the CM temperature monitors range. This monitoring relay operates with a rated control supply voltage of 24 – 240 V AC / DC and has a 3 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCN.012P is able to measure temperatures with up to three sensor circuits using different type of sensors PT100, PT1000, PTC or NTC and it has embedded Modbus RTU communication interface. The LCD at the front of the relay shows the currently measured values and maintenance data. can be configured exactly as you need either via a black-lit LCD or smartphone app. Parametrization and configuration are just one touch away with the ABB EPiC app even in a non-powered state – reducing installation time by 80%. The device offers maintenance free Easy Connect Technology with push-in terminals. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Measuring range | -200 … +850 °C |
|---|---|
| Control supply voltage Us | 24 – 240 V AC/DC |
| Relay outputs | 3 c/o (SPDT), contacts rated 250 V / 4 A |
| Sensor types | PT100, PT1000, PTC, NTC |
| Terminals / connection | maintenance free Easy Connect Technology, push-in terminals |
| Dimensions (W × D × H) | 45 mm × 103.7 mm × 85.6 mm (width 45 mm, depth 103.7 mm, height 85.6 mm) |
| Net weight | 0.27 kg |
| Number of channels | up to 3 sensor circuits |
| Communication interface | embedded Modbus RTU; NFC; black-lit LCD display |
| EAN | 4013614552663 |
| Customs tariff number | 85364900 |
| Communication | Modbus RTU; NFC |
| Long_description_segment_note | one segment begins mid-sentence (‘can be configured exactly as you need…’); kept verbatim, subject likely clipped by extractor, not fabricated |
| Country of origin | Germany |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 104 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
