Description

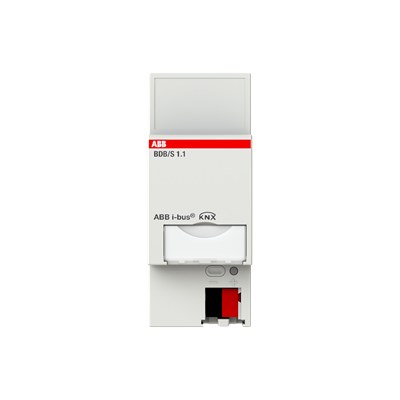

It detects local operation cycles and operating hours to plan the maintenance or durability evaluation of the devices. For each of the 35 channels to be monitored, limit values can be set and a message sent if this limit is exceeded. The logging of operating hours can be predetermined for the total or remaining time. These values can be modified via communication objects. No additional power supply required, the device is powered from KNX bus. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Degree of Protection | IP20 |
|---|---|
| Product Range | KNX |
| Power Loss | 0.3 W (Total 0.3 W) |
| Mounting Type | DIN-Rail |
| Colour | light grey |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 36 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm |
| Product Net Weight | 0.1 kg |
| EAN | 4016779657532 |
| Compatible Bus Systems | KNX (TP) |
| Number of Batteries | 0 |
| EU Data Act Applicability and Compliance | Applicable – Compliant |
| Country of origin | Germany |
| Customs tariff number | 85389091 |
| Manufacturer standard delivery time | 2 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
