Description

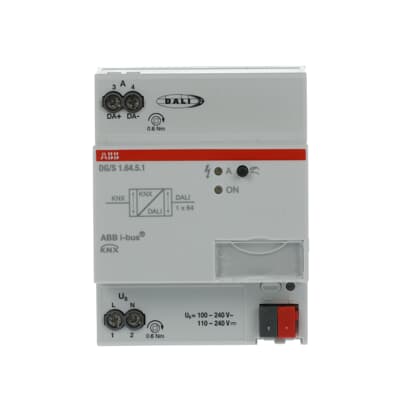

Single-Master DALI Controller certificated acc. to DALI-2 (EN 62386). The device is used to control DALI or DALI-2 devices via ABB i-bus® KNX. Two DALI output for up to 64 DALI participants. DALI power supply is integrated. Control and status feedback is carried out via KNX per DALI participants (64), with lighting groups (16), together in broadcast or per scenes (16). DALI devices type DT1 (Self-contained emergency converter acc. EN 62386-202) and type DT8 (colour temperature Tc & RGB(W) acc. EN 62386-209) will be supported. Other DALI devices e.g., DT6 can be controlled via standard DALI commands acc. to EN 62386-102. Extensive fault and error messages are available. Slave-, staircase-, force-, block- and scene-function are integrated. Colour can set and dim, HSV(W)-, Dim2Warm-, HCL-function, 4 sequencer per DALI output can be used. A standby switch-off in combination with a KNX switch actuator (e.g., SA/S) and the integration of the DALI Gateways into a load control system are possible. By means of KNX and DT1 converter different emergency tests (e.g., function and duration test) can be triggered, test results are transferred back to KNX. For diagnostic use and individual change of the DALI address or group assignment a separate software tool (ABB i-bus® Tool) is available. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Degree of Protection | IP20 |
|---|---|
| Number of Outputs | 1 |
| Product Range | KNX |
| Integrated Webserver | No |
| Ambient Air Temperature | Operation -5 … +45 °C |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.133 kg |
| Communication Interface | DALI |
| Number of LEDs | 1 |
| Compatible Bus Systems | KNX (TP) |
| Software Updateable | Yes |
| Number of Batteries | 0 |
| E-Number (Finland) | 2814675 |
| E-Number (Norway) | 4544205 |
| E-Number (Sweden) | 1739866 |
| E-Number (Switzerland) | 405670325 |
| EAN | 4016779067201 |
| Country of origin | Germany |
| Customs tariff number | 85176200 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
