Description

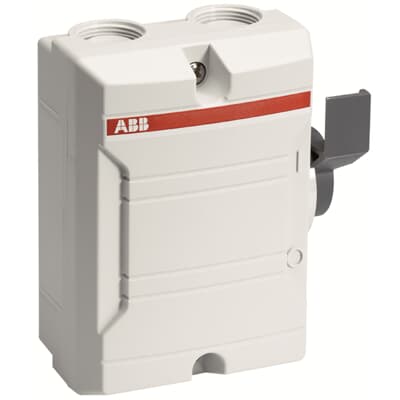

Encl. Switch Disconnector, 4-p. 415V AC23 16A, 7.5kW. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated Operational Voltage (AC-23) | 415 V |
|---|---|
| Rated Operational Current (AC-23) | 16 A |
| Rated Power (AC-23) | 7.5 kW |
| Thermal Current (Ith) | 25 A fully enclosed |
| Poles | 4-p. |
| Degree of Protection | IP65 (acc. to IEC 60529); membrane grommets IP54 |
| Product Type | Enclosed Switch Disconnector |
| Enclosure Material | Plastic (rigid polycarbonate) |
| Handle Color | Grey |
| Product Net Width | 111 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.31 kg |
| Cable Cross-Section | 0.75 … 10 mm² |
| Connecting Capacity | Screw Clamp 0.75 … 10 mm²; Screw Clamp / PE Terminal 1pc 0.75 … 10 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets per Side | 2xM25 / 2xM25 |
| Country of Assembly | Bulgaria |
| Country of Last Processing | Bulgaria |
| EAN | 7392696008525 |
| Customs Tariff Number | 85365080 |
| Country of origin | Bulgaria |
| Recyclability | 70.7% according to EN45555; UL 2799 Zero Waste To Landfill Validation available |
| Manufacturer standard delivery time | 10 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
