Description

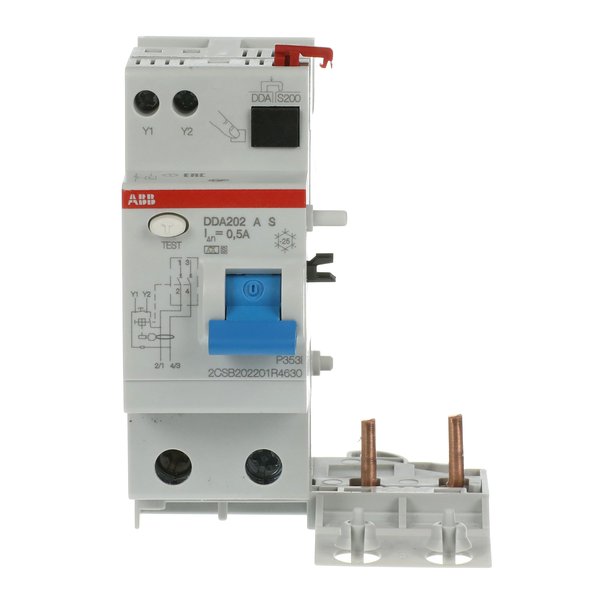

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Test Voltage (Ut) | 195…254 V |
| Rated Current Sensitivity | 500 mA |
| Maximum Surge Current | 5 kA |
| Leakage Current Type | A |
| Power Supply Connection | Arbitrary |
| Number of Poles | 2P |
| Operating Characteristic | Selective |
| Short-Circuit Current Rating (SCCR) UL/CSA | 1 kA |
| Rated Voltage (Ur) | 230/400 V |
| Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 63 A |
| Rated Residual Current | 500 mA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | Total 5 W |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard – 85.84 %; Recycled Paper – 0 %; Recycled Paper – 0 % |
| Electrical Endurance | 10000 cycle |
| Number of Modular Spacings per DIN Rail | 4 |
| Tightening Torque | 2.8 N·m |
| Cable Cross-Section | Flexible Cable 0…25 mm²; Rigid Cable 0…25 mm² |
| Connecting Capacity | Flexible 0…25 mm²; Rigid Cable 0…25 mm² |
| Number of Modules | 4 |
| Carbon Footprint | Full Lifecycle 6.965276 kg CO₂ eq |
| End Of Life Disassembling Instructions | 9AKK108469A7485 (Document) |
| ABB EcoSolutions Profile | 9AKK108471A0995 (Document) |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 69.47 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available |
| Extended Product Lifetime | Product Durability is Enhanced |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 24 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 70 x 93 x 69 mm |
| Net weight | 0,2100 kg |
