Description

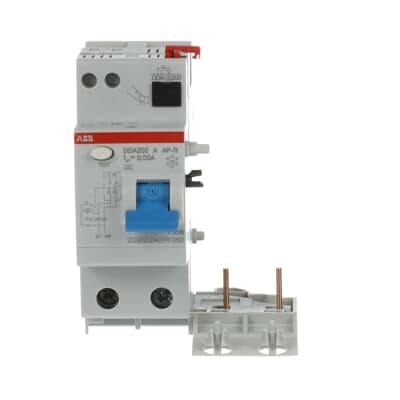

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A APR |
|---|---|
| Leakage Current Type | A |
| Operating Characteristic | 10ms Delay (High Immunity) |
| Number of Poles | 2P |
| Rated Current (In) | 25 A |
| Rated Residual Current | 30 mA |
| Rated Current Sensitivity | 30 mA |
| Rated Voltage (Ur) | 230/400 V |
| Rated Operational Voltage | 230 V |
| Test Voltage (Ut) | 195…254 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Short-Circuit Current Rating (SCCR) UL/CSA | 1 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Maximum Surge Current | 3 kA |
| Power Supply Connection | Arbitrary |
| Power Loss | Total 2 W |
| Standards | IEC/EN 60664-1 |
| Width | 70 mm |
| Height | 93 mm |
| Depth | 69 mm |
| Weight | 325 g |
| Electrical Endurance | 10000 cycle |
| Number of Modules | 4 |
| Number of Modular Spacings per DIN Rail | 4 |
| Tightening Torque | 2.8 N·m |
| Cable Cross-Section | Flexible Cable 0…25 mm²; Rigid Cable 0…25 mm² |
| Connecting Capacity | Flexible 0…25 mm²; Rigid Cable 0…25 mm² |
| EAN | 8012542801108 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 24 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
