Description

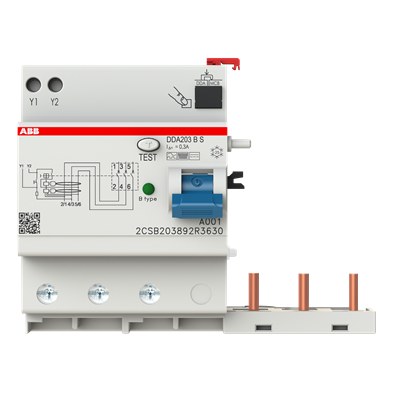

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. Type B is also sensitive to continuous current pulsating earth fault currents. They are used for protection in installations with electronic equipment according to EN 50178. Applications: tertiary and industrial. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type B |
|---|---|
| Test Voltage (Ut) | 310…440 V |
| Rated Current Sensitivity | 300 mA |
| Maximum Surge Current | 5 kA |
| Leakage Current Type | B |
| Power Supply Connection | Arbitrary |
| Number of Poles | 3P |
| Operating Characteristic | Selective |
| Degree of Protection | IP2X |
| Pollution Degree | 2 |
| Ambient Temperature | -25…55 °C |
| Ambient Air Temperature | Operation -25…50 °C |
| Product Net Width | 122.5 mm |
| Product Net Height | 93 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 395 g |
| Electrical Endurance | 10000 cycle |
| Number of Modular Spacings per DIN Rail | 7 |
| Tightening Torque | 2.8 N·m |
| Cable Cross-Section | Flexible Cable 0…25 mm² |
| Connecting Capacity | Flexible 0…25 mm² |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5…150…5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| E-Number (Norway) | 1667487 |
| EAN | 8012542733126 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 35 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
