Description

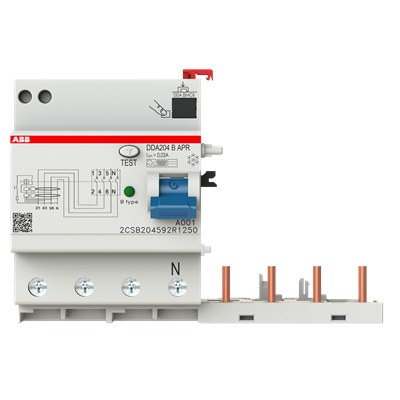

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. Type B is also sensitive to continuous current pulsating earth fault currents. They are used for protection in installations with electronic equipment according to EN 50178. Applications: tertiary and industrial. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type B |
|---|---|
| Test Voltage (Ut) | 195…254 V |
| Rated Current Sensitivity | 30 mA |
| Maximum Surge Current | 3 kA |
| Leakage Current Type | B |
| Power Supply Connection | Arbitrary |
| Number of Poles | 4P |
| Operating Characteristic | 10ms Delay (High Immunity) |
| Degree of Protection | IP2X |
| Pollution Degree | 2 |
| Ambient Temperature | -25…55 °C |
| Ambient Air Temperature | Operation -25…50 °C |
| Product Net Width | 140 mm |
| Product Net Height | 93 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 395 g |
| Electrical Endurance | 10000 cycle |
| Number of Modular Spacings per DIN Rail | 8 |
| Tightening Torque | 1.2 N·m |
| Cable Cross-Section | Flexible Cable 0…16 mm² |
| Connecting Capacity | Flexible 0…16 mm² |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5…150…5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| E-Number (Norway) | 1667488 |
| EAN | 8012542732228 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
