Description

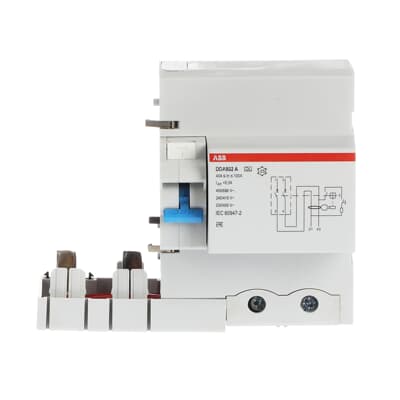

The RCD Block DDA800 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is suitable for assembly with MCBs S800 series<span style=”display: inline;” class=”showlongDescription”>… </span><span style=”display:none;” class=’hiddenlongDescription’> up to 100A. </span><span style=”cursor:pointer; font-weight:bold;” class=”showmore” onclick=”showMore()”><span class=”showmorespan”> Show more</span></span> <span style=”display:none; cursor:pointer; font-weight:bold;” class=”showless” onclick=”showLess()”><span class=”showlessspan”>Show less</span></span>. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Maximum Surge Current | 0.25 kA |
| Leakage Current Type | A |
| Number of Poles | 2P |
| Operating Characteristic | Instantaneous |
| Degree of Protection | IP2X |
| Pollution Degree | 2 |
| Suitable For | S800S |
| Ambient Temperature | -25…60 °C |
| Ambient Air Temperature | Operation -25 … 60 °C |
| Width in Number of Modular Spacings | 4.5 |
| Product Net Width | 81 mm |
| Product Net Height | 108.2 mm |
| Product Net Depth / Length | 82.3 mm |
| Product Net Weight | 300 g |
| Connecting Capacity | Rigid 6 … 50 mm² |
| E-Number (Norway) | 1627038 |
| EAN | 8012542545033 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 24 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
