Description

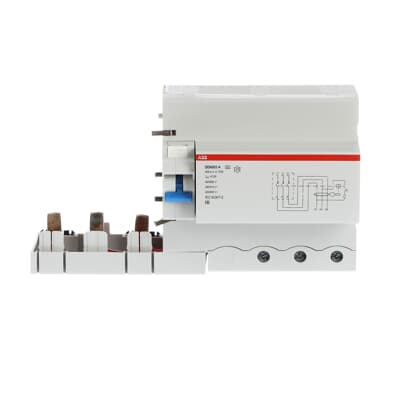

The RCD Block DDA800 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is suitable for assembly with MCBs S800 series up to 100A. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Maximum Surge Current | 0.25 kA |
| Leakage Current Type | A |
| Number of Poles | 3P |
| Operating Characteristic | Instantaneous |
| Degree of Protection | IP2X |
| Pollution Degree | 2 |
| Suitable For | S800S |
| Ambient Temperature | -25…60 °C |
| Ambient Air Temperature | Operation -25 … 60 °C |
| Width in Number of Modular Spacings | 6.5 |
| Product Net Width | 117 mm |
| Product Net Height | 108.2 mm |
| Product Net Depth / Length | 82.3 mm |
| Product Net Weight | 400 g |
| Connecting Capacity | Rigid 6 … 50 mm² |
| E-Number (Norway) | 1627045 |
| EAN | 8012542541738 |
| Country of origin | Italy |
| Customs tariff number | 85362010 |
| Manufacturer standard delivery time | 24 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
