Description

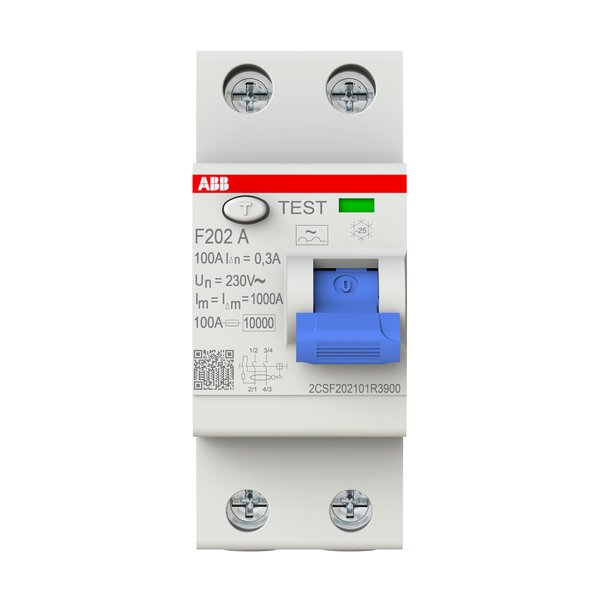

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Test Voltage (Ut) | 110-254 V |
| Leakage Current Type | A |
| Power Supply Connection | Arbitrary |
| Number of Poles | 2P |
| Operating Characteristic | Instantaneous |
| Rated Cross-Section | 4 – Multi-Wired 0…35 mm²; 1 – Solid-Core 35…35 mm² |
| Wire Stripping Length | Top 12.7 mm; Bottom 14.9 mm |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 100 A |
| Rated Residual Current | 300 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Frequency (f) | 50/60 Hz |
| Accessory Type | Auxiliary contact; Auxiliary/Signal contact; Shunt trip; Undervoltage release; Overvoltage release; Motor Operating Device; Autoreclosing Unit |
| Screw Terminal Type | Cage Terminal |
| Terminal Type | Screw Terminals |
| Sustainable Material Content in Packaging (wt. %) | Recycled Paper – 0 %; Recycled Paper – 3.91 %; Recycled Cardboard – 29.08 %; Recycled Cardboard – 61.23 %; Recycled Cardboard – 2.66 % |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Modular Spacings per DIN Rail | 2 |
| Tightening Torque | 2.8 N·m |
| Options Provided | None |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm²; Rigid 35 … 35 mm²; Flexible 35 … 35 mm² |
| Carbon Footprint | Full Lifecycle 8.966856 kg CO₂ eq |
| Offered with Takeback Services | Take Back for Recycling |
| End Of Life Disassembling Instructions | 9AKK108470A1748 (document link) |
| EAN | 8012542915706 |
| ABB EcoSolutions Profile | 9AKK108469A3794 (document link) |
| Recyclability Rate acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 82.05 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available |
| Extended Product Lifetime | Product Durability is Enhanced |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 35 x 85 x 69 mm |
| Net weight | 0,2000 kg |
