Description

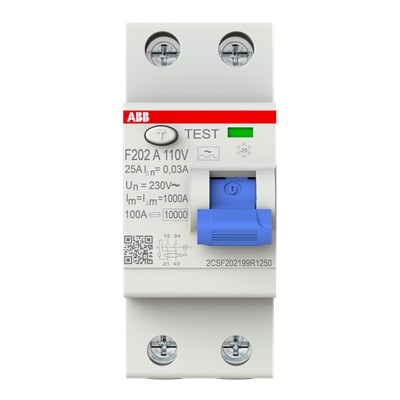

The RCCBs F200 series assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct contacts. Applications: residential, commercial, industrial. This particular serias has the minimum operating voltage of test buttom 0f 110V and it is suitable for application at 230V. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Residual Operating Current | 0.03 A / 30 mA |
|---|---|
| Rated Current (In) | 25 A |
| Number of Poles | 2P |
| Type of Residual Current | Type A |
| Test Voltage (Ut) | 110-254 V |
| Operating Characteristic | Instantaneous |
| Power Supply Connection | Arbitrary |
| Wire Stripping Length | 12 mm |
| Rated Cross-Section | Multi-Wired 0…25 mm²; Solid-Core 25…25 mm² |
| Terminal Type | Screw Terminals |
| Width | 35 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Weight | 200 g |
| Options Provided | None, Suitable for 110V applications |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Modular Spacings per DIN Rail | 2 |
| Tightening Torque | 2.8 N·m |
| Connecting Capacity | Busbar 10 mm²; Rigid 25…25 mm²; Flexible 25…25 mm² |
| Accessories Available | Yes |
| Application | Residential, commercial, industrial |
| EAN | 8012542343332 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
