Description

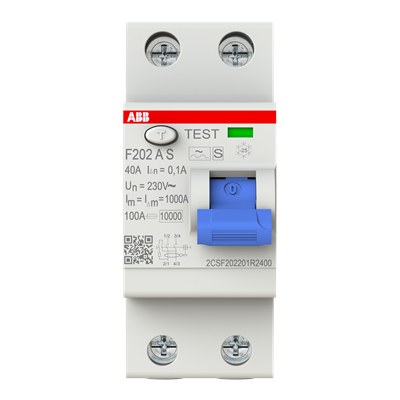

Residual Current Circuit Breaker F200 – 2P – 100 mA – 40 A – Type A – Selective. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Leakage Current Type | A |
| Operating Characteristic | Selective |
| Number of Poles | 2P |
| Rated Current (In) | 40 A |
| Rated Residual Current | 100 mA |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Test Voltage (Ut) | 110…254 V |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Maximum Surge Current | 5 kA |
| Power Supply Connection | Arbitrary |
| Rated Cross-Section | Multi-Wired 0…25 mm²; Solid-Core 25…25 mm² |
| Wire Stripping Length | 12 mm |
| Terminal Type | Screw Terminals |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Width | 35 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Weight | 200 g |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Modular Spacings per DIN Rail | 2 |
| Tightening Torque | 2.8 N·m |
| Connecting Capacity | Busbar 10 mm²; Rigid 25…25 mm²; Flexible 25…25 mm² |
| Carbon Footprint | Full Lifecycle 5.137452 kg CO₂ eq |
| EAN | 8012542822905 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
