Description

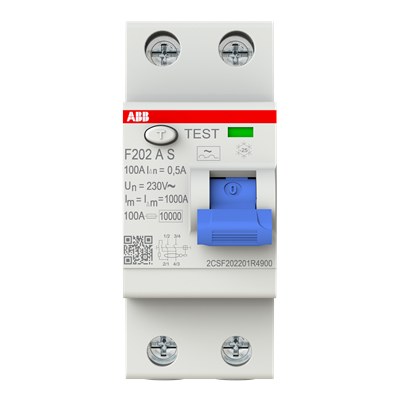

The RCCBs F200 series assures protection to people and installations against fault current to earth. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Leakage Current Type | A |
| Operating Characteristic | Selective |
| Number of Poles | 2P |
| Rated Current (In) | 100 A |
| Rated Residual Current | 500 mA |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Test Voltage (Ut) | 110…254 V |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Maximum Surge Current | 5 kA |
| Power Supply Connection | Arbitrary |
| Rated Cross-Section | Multi-Wired 0…35 mm²; Solid-Core 35…35 mm² |
| Wire Stripping Length | Top 12.7 mm; Bottom 14.9 mm |
| Terminal Type | Screw Terminals |
| Screw Terminal Type | Cage Terminal |
| Standards | UL 2799 |
| Depth | 69 mm |
| Height | 85 mm |
| Width | 35 mm |
| Weight | 200 g |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Modular Spacings per DIN Rail | 2 |
| Tightening Torque | 2.8 N·m |
| Connecting Capacity | Busbar 10 mm²; Rigid 35…35 mm²; Flexible 35…35 mm² |
| EAN | 8012542916208 |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
