Description

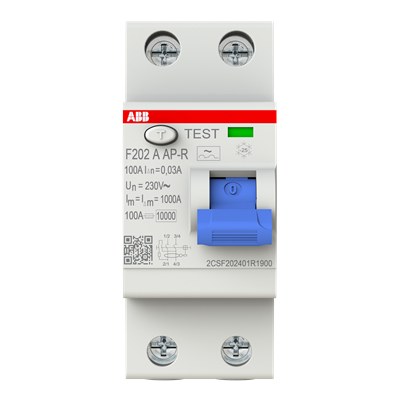

Residual Current Circuit Breaker F200 – 2P – 30 mA – 100 A – Type A APR – 10ms Delay (High Immunity). New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of Poles | 2P |
|---|---|
| Rated Current (In) | 100 A |
| Rated Residual Current | 30 mA |
| Type of Residual Current | Type A APR |
| Operating Characteristic | 10 ms delay, high immunity |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Test Voltage (Ut) | 170-254 V |
| Input Voltage Type | AC |
| Leakage Current Type | A |
| Maximum Surge Current | 3 kA |
| Power Supply Connection | Arbitrary |
| Rated Cross-Section | Multi-Wired 0…35 mm²; Solid-Core 35…35 mm² |
| Wire Stripping Length | Top 12.7 mm; Bottom 14.9 mm |
| Terminal Type | Screw Terminals |
| Screw Terminal Type | Cage Terminal |
| Standards | EN45555 (recyclability) |
| Width | 35 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Weight | 200 g |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Tightening Torque | 2.8 N·m |
| Connecting Capacity | Busbar 10 mm²; Rigid 35…35 mm²; Flexible 35…35 mm² |
| Number of Modular Spacings per DIN Rail | 2 |
| Accessories Available | Yes |
| Options Provided | None |
| Carbon Footprint | Full Lifecycle 8.966856 kg CO₂ eq |
| EAN | 8012542916505 |
| Recyclability Rate | 82.05 % |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
