Description

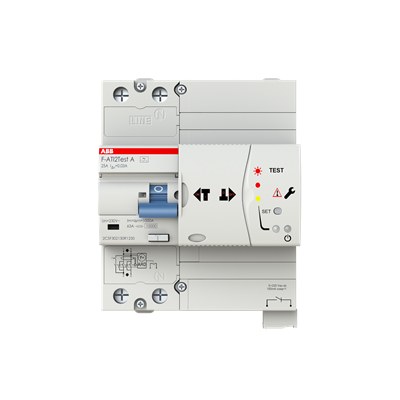

F-ATI and F-ARI Test are RCCBs equipped with automatic test features. RCCBs are supposed to be checked periodically in order to make sure that the contacts are working properly and the device is able to trip in case of leakage to earth. This swift operation affects the operational continuity of the circuits downstream. F-ATI and F-ARI Test ranges push the periodic test to another level as this is run automatically and with no downtime. Therefore, also the operations carried out by maintenance personnel are reduced to the very minimum. In addition to the automatic test, F-ARI Range features a reclosing unit that tries to reclose the RCCB as it trips. The reclosing operations are based on an insulation check to make sure that no permanent fault is present. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1 kA |
| Maximum Surge Current | 3 kA |
| Leakage Current Type | A |
| Number of Poles | 2P |
| Operating Characteristic | Instantaneous |
| Rated Cross-Section | 1 – Solid-Core 1 … 35 mm² ; 4 – Multi-Wired 1 … 35 mm² |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 230 … 400 V AC |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 25 A |
| Rated Residual Current | 30 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Frequency (f) | 50 Hz |
| Power Loss | Total 2.2 W |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Position of Neutral Terminals | Right |
| Ambient Temperature | -25…60 °C |
| Ambient Air Temperature | Operation -25…60 °C |
| Mounting Type | DIN-Rail |
| Standards | EN 61008 ; VDE V 0664-120 (annex M) |
| Width in Number of Modular Spacings | 5 |
| Product Net Width | 90 mm |
| Product Net Height | 115 mm |
| Product Net Depth / Length | 80 mm |
| Product Net Weight | 570 g |
| Built-In Depth (t2) | 80 mm |
| EAN | 8012542288855 |
| Catalog Description | RCD With Automatic Test F-ATI Test – 2P – 30 mA – 25 A – Type A – Instantaneous |
| EPLAN Data | 9AAC187565_EPLAN |
| E-Number (Finland) | 3211238 |
| Unspsc | 39121601 |
| Object Classification Code | Q |
| Country of origin | PT |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
