Description

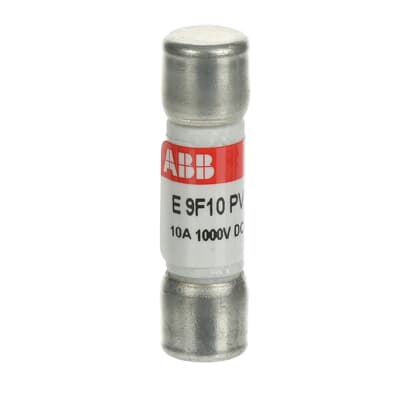

E 9F10 PV is a 10,3×38 mm cylindrical fuse for photovoltaic applications. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Contact Material | copper tin plated (Cu/Sn) |
|---|---|
| Rated Voltage (Ur) | 1000 V |
| Rated Current (In) | 10 A |
| Maximum Breaking Capacity | 50 kA |
| Power Loss | Total 1.5 W ; at Rated Operating Conditions per Pole 1.5 W |
| Fuse Type | gPV |
| Release Type | gPV: Used in string protection of PV modules in photovoltaic applications |
| Construction Material | GMG |
| Standards | IEC 60269-6 |
| Standardization Body | UL |
| Product Net Width | 1 mm |
| Product Net Height | 4 mm |
| Product Net Depth / Length | 1 mm |
| Product Net Weight | 7 g |
| EAN | 8012542135364 |
| Catalog Description | E 9F10 PV Fuse link |
| Fuse Size | 10×38 |
| Unspsc | 39121606 |
| Object Classification Code | F |
| Certification Agency | EAC |
| Country of origin | Mexico |
| Customs tariff number | 85361010 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
