Description

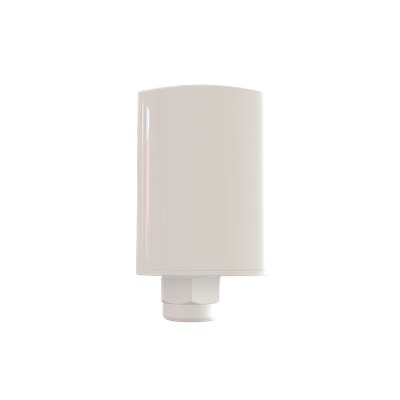

DCF77 antenna to be used with yearly time switch DY365. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Antenna |
|---|---|
| Power Supply | 12 V DC |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | Total 0.048 V·A |
| Degree of Protection | Housing IP20 |
| Number of Connections | 31 |
| Meter Type | Digital |
| Ambient Air Temperature | Operation 0 … +50 °C ; Storage -10 … +60 °C |
| Mounting Type | Wall Mounting |
| Standards | EN-301 489-1 ; EN-301 489-3 ; EN-301 489-19 ; EN-300 330 ; EN-60950-1 ; EN 50581 |
| Product Net Width | 41 mm |
| Product Net Height | 89 mm |
| Product Net Depth / Length | 52 mm |
| Product Net Weight | 100 g |
| EAN | 8012542504214 |
| Catalog Description | DY DCF77 Digital timer |
| Tightening Torque | 0.5 N·m |
| Cable Length | 100 m |
| Connecting Capacity | Solid 1.5 mm² |
| E-Number (Sweden) | 1330656 |
| Unspsc | 39122208 |
| Object Classification Code | K |
| Country of origin | Italy |
| Customs tariff number | 85291095 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
