Description

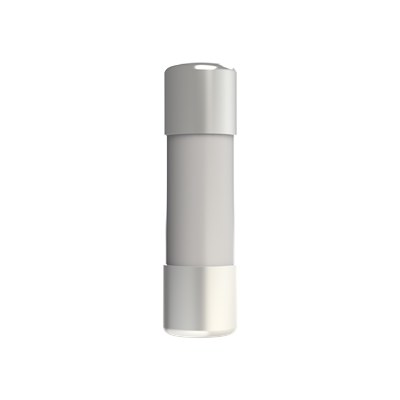

E 9F14 AM45 is a 14×51 mm cylindrical fuse for motors protection. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Contact Material | copper silver plated (Cu/Ag) |
|---|---|
| Rated Voltage (Ur) | 500 V |
| Rated Current (In) | 45 A |
| Maximum Breaking Capacity | 120 kA |
| Power Loss | Total 2.85 W ; at Rated Operating Conditions per Pole 2.85 W |
| Fuse Type | aM |
| Release Type | aM: Used in short-circuit protection of motor circuits |
| Construction Material | Ceramic |
| Standards | IEC 60269-2 |
| Product Net Width | 1 mm |
| Product Net Height | 51 mm |
| Product Net Depth / Length | 1 mm |
| Product Net Weight | 6 g |
| EAN | 8012542574330 |
| Catalog Description | E 9F14 AM45 Fuse link |
| Fuse Size | 14×51 |
| Unspsc | 39121606 |
| Object Classification Code | F |
| Country of origin | TN |
| Customs tariff number | 85361010 |
| Manufacturer standard delivery time | 23 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
