Description

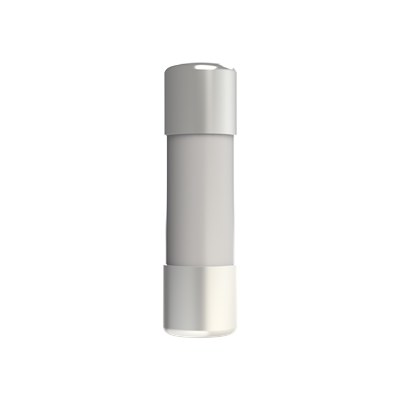

E 9F14 AM25 is a 14×51 mm cylindrical fuse for motor protection. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Contact Material | copper silver plated (Cu/Ag) |
|---|---|
| Rated Voltage (Ur) | 690 V |
| Rated Current (In) | 25 A |
| Maximum Breaking Capacity | 120 kA |
| Power Loss | Total 1.55 W ; at Rated Operating Conditions per Pole 1.55 W |
| Fuse Type | aM |
| Release Type | aM: Used in short-circuit protection of motor circuits |
| Construction Material | Ceramic |
| Standards | IEC 60269-2 |
| Product Net Width | 1 mm |
| Product Net Height | 51 mm |
| Product Net Depth / Length | 1 mm |
| Product Net Weight | 6 g |
| EAN | 8012542575238 |
| Catalog Description | E 9F14 AM25 Fuse link |
| Fuse Size | 14×51 |
| Unspsc | 39121606 |
| Object Classification Code | F |
| Country of origin | France |
| Customs tariff number | 85361010 |
| Manufacturer standard delivery time | 28 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
