Description
E 90 50/125 fuse holders are appropriate to protect against overloads and short circuits. They are designed for use with cylindrical fuses from 50 to 125 A. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of Protected Poles | 1 |
|---|---|
| Number of Poles | 1P |
| Rated Operational Current AC (Ie) | 125 A |
| Rated Voltage (Ur) | acc. To IEC 690 V ; acc. To UL 690 V |
| Rated Operational Voltage | AC-20B 690 V |
| Rated Insulation Voltage (Ui) | 1 kV |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 9.5 W ; at Rated Operating Conditions per Pole 9.5 W |
| Degree of Protection | IP20 |
| Suitable For | E 90 |
| Suitable for Product Class | Fuse holders |
| Lock Type | Padlockable |
| Sealing Type | Sealing Wire |
| Material of Conductor | Copper |
| Ambient Air Temperature | Operation -5 … +40 °C ; Storage -25 … +70 °C |
| Mounting Type | DIN-Rail |
| Standardization Body | UL |
| Product Net Width | 35 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 73.26 mm |
| Product Net Weight | 135 g |
| Width in Number of Modular Spacings | 2 |
| Built-In Depth (t2) | 73.26 mm |
| EAN | 8012542773320 |

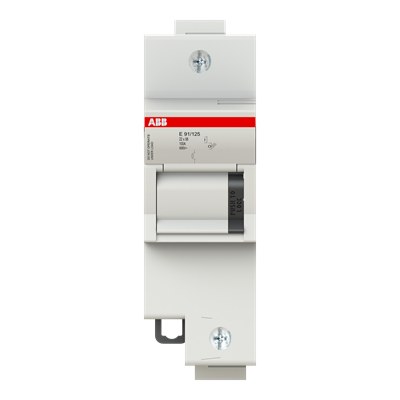

| Catalog Description | E 91/125 Fuse disconnector |
| Tightening Torque | 3.5…4 N·m |
| Utilization Category | Connecting and disconnecting under no-load conditions – occasional actuation (AC-20B) |
| Options Provided | No |
| Recommended Screw Driver | Pozidriv 2 |
| Connecting Capacity | Rigid 4 … 50 mm² ; Stranded 4 … 35 mm² |
| Fuse Size | 22×58 mm |
| Operating Humidity (RHamb) | Maximum at +20 °C 90 % |
| Resistance to Vibrations | 1 mm 2 … 13 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 18 shocks 11 ms |
| E-Number (Finland) | 3017011 |
| E-Number (Norway) | 1416160 |
| Unspsc | 39121624 |
| Object Classification Code | F |
| Certification Agency | BV ; Korean register ; CCC ; EAC |
| Country of origin | TN |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 4 |
| Product status (supplier data) | Active |
