Description

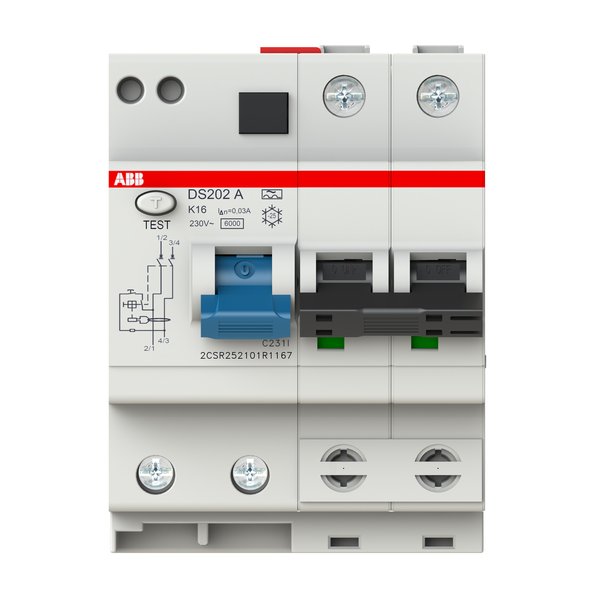

The RCBOs DS200 series has the function to protect against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection aganist direct contacts. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 10 kA |
| Power Supply Connection | Arbitrary |
| Number of Protected Poles | 2 |
| Number of Poles | 2P |
| Operating Characteristic | Instantaneous |
| Tripping Characteristic | K |
| Rated Voltage (Ur) | 230 V AC |
| Rated Operational Voltage | 230 V AC |
| Rated Current (In) | 16 A |
| Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 6 kA |
| Maximum Breaking Capacity | 6 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | Total 4.9 W |
| Position of Neutral Terminals | Right; Left |
| Release Type | K |
| Ambient Air Temperature | Operation -25 … +55 °C; Storage -40 … +70 °C |
| Product Net Width | 70 mm |
| Product Net Height | 93 mm |
| Product Net Depth / Length | 69 mm |
| Weight (JSON-LD) | 475 g |
| Electrical Endurance | 10000 cycle |
| Number of Earth Leakage Circuit Breakers (ELCBs) | 1 |
| Options Provided | None |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm²; Rigid 25 … 25 mm²; Flexible 25 … 25 mm² |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5…150…5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| EAN | 8012542930501 |
| Country of origin | Italy |
| Customs tariff number | 85363010 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
