Description

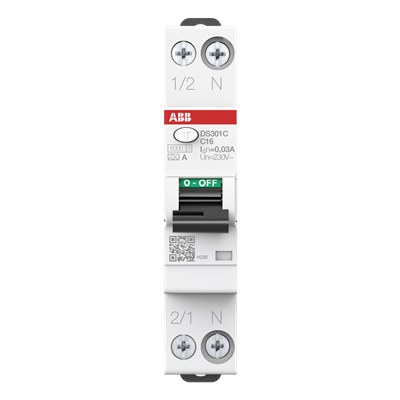

RCBO, 1-pole + N, C-characteristics, IΔn 0.03 A, 230 V AC, Width 1 modular units. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Frequency | 50/60 Hz |
|---|---|
| Poles | 1P+N |
| Rated current | 16 A |
| Tripping curve | C |
| Residual current | 0.03 A |
| Tripping type | AC |
| Pollution degree | 2 |
| Power dissipation | 2.9 W/pole |
| Type of Residual Current | Type A |
| Test Voltage (Ut) | 170 … 264 V |
| Dielectric Test Voltage | 2.5 kV |
| Rated Residual Breaking Capacity (IΔm) | EN 61009-1 6000 A | IEC 61009-1 4500 A |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Number of Protected Poles | 1 |
| Number of Poles | 1P+N |
| Operating Characteristic | Instantaneous |
| Rated Cross-Section | 1 – Solid-Core 1 … 10 mm² | 4 – Multi-Wired 1 … 6 mm² |
| Wire Stripping Length | 10 mm |
| Tripping Characteristic | C |
| Rated Operational Voltage | acc. to IEC 60898-1 230 / 240 V AC |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (I<sub>n</sub>) | 16 A |
| Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 6 kA |
| Rated Frequency (f) | 50 Hz |
| Power Loss | Average per Pole 1.24 W | Phase Pole 1.84 W | Neutral Pole 0.64 W | Total 2.48 W |
| Overvoltage Category | III |
| Degree of Protection | IP20 | IP40 |
| Product family | MiniSocket RCBO |
| Product type | RCBO |
| Standards | IEC/EN 61008-1; AS 3190; BS EN 61008-1; GOST; NMC 61008; IEC/EN 61009-1 | IEC/EN 61009-2-1 |
| Ambient temperature | -5 to 40 °C |
| Terminal capacity | up to 35 mm² |
| Mounting | DIN rail |
| Material Resource Reduction (wt. %) | Design for Reduced Resource Consumption – 45 % |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard – 71.18 % | Recycled Paper – 0 % |
| Position of Neutral Terminals | Right |
| Accessory Type | Please refer to the datasheet |
| Housing Type | Insulation group I – II, RAL 7035 |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Material | Insulation Group II, Black, Sealable |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
| Ambient Air Temperature | Operation -25 … 55 °C |
| Reference Ambient Air Temperature | 30 °C |
| Mounting Type | DIN-Rail |
| Mounting Position | Any |
| Weight | 0.121 kg |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 17.6 mm |
| Product Net Height | 92 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 110 g |
| Built-In Depth (<em>t<sub>2</sub></em>) | 17.6 mm |
| EAN | 7333394007798; 8012542361558 |
| Tariff number | 90.03 |
| Short circuit withstand | 4.5 kA |
| Sales channel | Wholesale |
| Package quantity | 10 piece |
| Conflict minerals | Contains minerals of concern: Tin |
| Catalog Description | Residual Current Circuit Breaker with Overcurrent Protection DS301C – 1P+N – 30 mA – 16 A – C – Type A – Instantaneous |
| Carbon Footprint | Full Lifecycle 16 kg CO₂ eq |
| Improved Energy Efficiency for Customers | Product Efficiency – Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Energy Limiting Class | 3 |
| Electrical Endurance | 7000 cycle |
| Mechanical Endurance | 7000 cycle |
| Number of Modular Spacings per DIN Rail | 1 |
| Fault Indication | Blue Flag Below Toggle |
| Tightening Torque | 1.2 N·m |
| Options Provided | Screwless ( Please check equivalent DSX301C ) |
| Accessories Available | Yes |
| Connecting Capacity | Screw Clamp / Rigid 69 … 10 mm² | Screw Clamp / With Insulated Ferrule 1 … 6 mm² | Screw Clamp / Without Insulated Ferrule 1 … 6 mm² | Screw Clamp / Flexible 1 … 10 mm² |
| Environmental Conditions | 28 cycles | |with 55 °C / 90-96 % | |and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5…150…5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| EPLAN Data | 9AAF618237_EPLAN |
| E-Number (Norway) | 1682798 |
| Mechanical Drawings | 9AKK107991A9486 | 9AKK107991A9487 |
| Unspsc | 39121601 |
| Object Classification Code | F |
| Etim9 | EC000905 – Earth leakage circuit breaker |
| Etim10 | EC000905 – Earth leakage circuit breaker |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 79.18 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill | UL 2799 Zero Waste To Landfill Validation available |
| Extended Product Lifetime | Product Durability is Enhanced |
| Customs tariff number | 85363010 |
| Manufacturer standard delivery time | 22 days |
| Packaging unit | Box x 96 |
| Product status (supplier data) | Active |
