Description

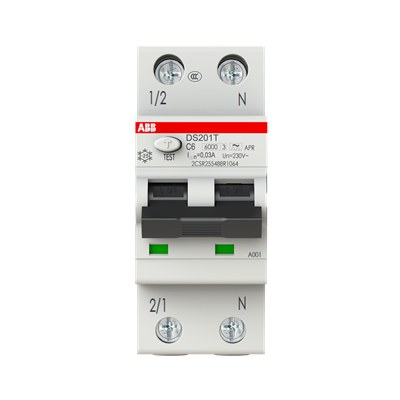

The DS201T series RCBO is a 1P+N in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents protection against the effects of sinusoidal alternating earth fault currents protection against indirect contacts and additional protection against direct contacts. DS201T meets the demand of a device suitable for installation in rolling stock equipment. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type APR |
|---|---|
| Test Voltage (Ut) | Minimum 170 V ; Maximum 264 V |
| Dielectric Test Voltage | 2 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 10 kA |
| Rated Residual Breaking Capacity (IΔm) | EN 61009-1 6000 A ; IEC 61009-1 6000 A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA |
| Maximum Surge Current | 3 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Number of Protected Poles | 1 |
| Number of Poles | 1P+N |
| Operating Characteristic | 10ms Delay (High Immunity) |
| Rated Cross-Section | 1 – Solid-Core 0.75 … 25 mm² ; 4 – Multi-Wired 0.75 … 16 mm² |
| Wire Stripping Length | 12 mm |
| Tripping Characteristic | C |
| Rated Operational Voltage | acc. to IEC 60898-1 230 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 6 A |
| Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 6 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | Average per Pole 1.3 W ; Phase Pole 2.4 W ; Neutral Pole 0.2 W ; Total 2.6 W |
| Overvoltage Category | III |
| Degree of Protection | IP20 ; IP40 |
| Pollution Degree | 2 |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard – 98 % ; Recycled Paper – 00 % ; Chemically Recycled Polymer – 00 % |
| Position of Neutral Terminals | Right |
| Accessory Type | Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device |
| Earthing Switch Type | Short-Time Delayed |
| Housing Type | Insulation group I – II, RAL 7035 |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Material | Insulation Group II, Black, Sealable |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
| Ambient Air Temperature | Operation -25 … 55 °C |
| Reference Ambient Air Temperature | 30 °C |
| Mounting Type | DIN-Rail |
| Mounting Position | Any |
| Standards | IEC 61009-1 ; IEC 61009-2-1 ; EN 61009-1 ; EN 61009-2-1 ; EN 45545 |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 182 g |
| Width in Number of Modular Spacings | 2 |
| Built-In Depth (t2) | 69 mm |
| EAN | 8012542567516 |
| Catalog Description | Residual Current Circuit Breaker with Overcurrent Protection DS201T – 1P+N – 30 mA – 6 A – C – Type APR – 10ms Delay (High Immunity) |
| Carbon Footprint | Full Lifecycle 27.8 kg CO₂ eq |
| Application | Traction |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Modular Spacings per DIN Rail | 2 |
| Fault Indication | Blue Flag on Toggle |
| Tightening Torque | 2.8 N·m |
| Options Provided | Suitable for traction applications |
| Accessories Available | Yes |
| Surge Immunity acc. to IEC 61000-4-5 | 3000 A |
| Number of Batteries | 0 |
| Connecting Capacity | Busbar 10 … 10 mm² ; Stranded 0.75 … 25 mm² ; Flexible with Ferrule 0.75 … 16 mm² ; Flexible 0.75 … 16 mm² |
| Environmental Conditions | 28 cycles ; with 55 °C / 90-96 % ; and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5…150…5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| EPLAN Data | 9AAC554445_EPLAN |
| E-Number (Sweden) | 2160115 |
| Unspsc | 39121601 |
| Object Classification Code | F |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 75.20 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill ; UL 2799 Zero Waste To Landfill Validation available |
| Extended Product Lifetime | Product Durability is Enhanced |
| Country of origin | Italy |
| Customs tariff number | 85363010 |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
