Description

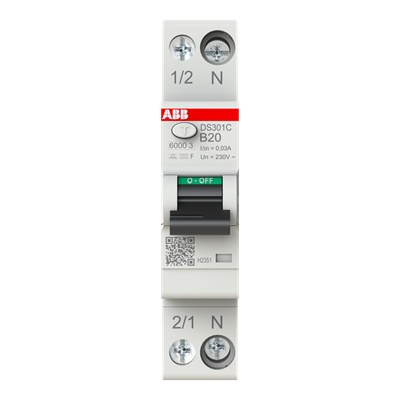

The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type F |
|---|---|
| Test Voltage (Ut) | 170 … 264 V |
| Dielectric Test Voltage | 2.5 kV |
| Primary Rated Impulse Withstand Voltage | 4 kV |
| Rated Current Sensitivity | 0.03 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 6 kA |
| Rated Residual Breaking Capacity (IΔm) | EN 61009-1 6000 A ; EN 61009-1 4500 A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 6 kA |
| Maximum Surge Current | 3000 A |
| Leakage Current Type | F |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Number of Protected Poles | 1 |
| Number of Poles | 1P+N |
| Operating Characteristic | 10ms Delay (High Immunity) |
| Rated Cross-Section | 1 – Solid-Core 1 … 10 mm² ; 4 – Multi-Wired 1 … 6 mm² |
| Wire Stripping Length | 10 mm |
| Frequency Range (frange) | Residual Current 1 … 1000 Hz |
| Tripping Characteristic | B |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | acc. to IEC 60898-1 230 / 240 V AC |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Current (In) | 20 A |
| Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 6 kA |
| Rated Frequency (f) | 50 Hz |
| Power Loss | Average per Pole 1.83 W ; Phase Pole 2.88 W ; Neutral Pole 0.78 W ; Total 3.66 W |
| Overvoltage Category | III |
| Degree of Protection | Terminals IP20 ; Housing IP40 |
| Pollution Degree | 2 |
| Material Resource Reduction (wt. %) | Design for Reduced Resource Consumption – 45 % |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard – 71.18 % ; Recycled Paper – 0 % |
| Position of Neutral Terminals | Right |
| Accessory Type | Please refer to the datasheet |
| Housing Type | Insulation group I – II, RAL 7035 |
| Release Type | B |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Material | Insulation Group II, Black, Sealable |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
| Ambient Temperature | -25 … 55 °C |
| Reference Ambient Air Temperature | 30 °C |
| Mounting Type | DIN-Rail |
| Mounting Position | Any |
| Standards | IEC/EN 61009-1 ; IEC/EN 61009-2-1 |
| Product Net Width | 0.0176 m |
| Product Net Height | 0.092 m |
| Product Net Depth / Length | 0.068 m |
| Product Net Weight | 0.110 kg |
| Width in Number of Modular Spacings | 1 |
| Built-In Depth (t2) | 17.6 mm |
| EAN | 8012542723356 |
| Catalog Description | Residual Current Circuit Breaker with Overcurrent Protection DS301C – 1P+N – 30 mA – 20 A – B – Type F – 10ms Delay (High Immunity) |
| Carbon Footprint | Full Lifecycle 16 kg CO₂ eq |
| Improved Energy Efficiency for Customers | Product Efficiency – Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Energy Limiting Class | 3 |
| Electrical Endurance | 7000 cycle |
| Mechanical Endurance | 7000 cycle |
| Number of Modular Spacings per DIN Rail | 1 |
| Fault Indication | Blue Flag Below Toggle |
| Tightening Torque | 1.2 N·m |
| Options Provided | Screwless ( Please check equivalent DSX301C ) |
| Accessories Available | Yes |
| Cable Size | 16 mm² |
| Connecting Capacity | Screw Clamp / Rigid 47 … 10 mm² ; Screw Clamp / With Insulated Ferrule 1 … 6 mm² ; Screw Clamp / Without Insulated Ferrule 1 … 6 mm² ; Screw Clamp / Flexible 1 … 10 mm² |
| Environmental Conditions | 28 cycles ; with 55 °C / 90-96 % ; and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5…150…5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g / 2 shocks / 13 ms |
| Mechanical Drawings | 9AKK107991A9486 ; 9AKK107991A9487 |
| Object Classification Code | F |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 79.18 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill ; UL 2799 Zero Waste To Landfill Validation available |
| Extended Product Lifetime | Product Durability is Enhanced |
| Country of origin | Italy |
| Customs tariff number | 85363030 |
| Manufacturer standard delivery time | 22 days |
| Packaging unit | Package x 1 |
| Product status (supplier data) | New product |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
