Description

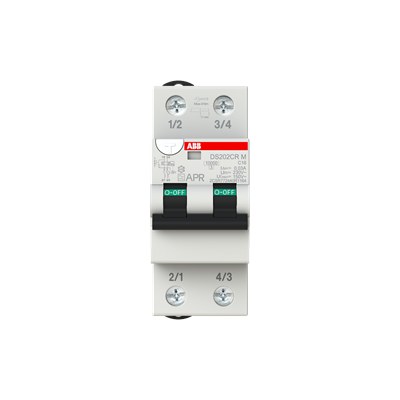

The DS202CR series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents. Protection against the effects of sinusoidal alternating and direct pulsating earth fault currents. Protection against indirect contacts and additional protection against direct contacts. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A APR |
|---|---|
| Test Voltage (Ut) | Minimum 150 V ; Maximum 254 V |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA |
| Maximum Surge Current | 3 kA |
| Power Supply Connection | Arbitrary |
| Number of Protected Poles | 2 |
| Number of Poles | 2P |
| Operating Characteristic | 10ms Delay (High Immunity) |
| Rated Cross-Section | 1 – Solid-Core 1 … 35 mm² ; 4 – Multi-Wired 1 … 25 mm² |
| Wire Stripping Length | 11 mm |
| Tripping Characteristic | C |
| Rated Operational Voltage | acc. to IEC 60898-1 230 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 16 A |
| Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 10 kA |
| Rated Frequency (f) | 50 Hz |
| Power Loss | Total 4.20 W |
| Overvoltage Category | III |
| Degree of Protection | IP20 |
| Pollution Degree | 3 |
| Position of Neutral Terminals | Right ; Left |
| Accessory Type | Auxiliary contact ; Signal contact / auxiliary contact |
| Earthing Switch Type | Short-Time Delayed |
| Ambient Air Temperature | Operation -25 … 55 °C |
| Mounting Type | DIN-Rail |
| Mounting Position | Any |
| Standards | IEC/EN 61009-1 ; IEC/EN 61009-2-1 |
| Product Net Width | 36 mm |
| Product Net Height | 86 mm |
| Product Net Depth / Length | 72 mm |
| Product Net Weight | 0.220 kg |
| Width in Number of Modular Spacings | 2 |
| Built-In Depth (t2) | 72 mm |
| EAN | 4022903035251 |
| Catalog Description | Residual Current Circuit Breaker with Overcurrent Protection DS202CR M – 2P – 30 mA – 16 A – C – Type A APR – 10ms Delay (High Immunity) |
| Carbon Footprint | Full Lifecycle 3.9 kg CO₂ eq |
| Offered with Takeback Services | Take Back for Recycling |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 operations |
| Mechanical Endurance | 20000 operations |
| Fault Indication | Blue Flag on Window |
| Tightening Torque | Nominal 2.8 N·m ; Max 4.0 N·m |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Connecting Capacity | Busbar 10…10 mm² ; Flexible 1…25 mm² ; Rigid Solid 1…35 mm² |
| Environmental Conditions | 28 cycle ; with 55 °C / 90-96 % ; and 25 °C / 95-100 % |
| E-Number (Norway) | 1629866 |
| Unspsc | 39121601 |
| Object Classification Code | F |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 76.95 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill ; UL 2799 Zero Waste To Landfill Validation available |
| Extended Product Lifetime | Product Durability is Enhanced |
| Country of origin | Italy |
| Customs tariff number | 85363010 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
