Description

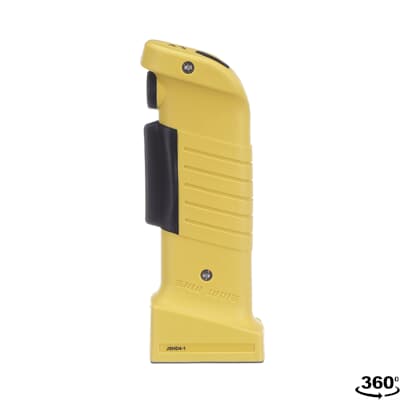

The JSHD4-3 is a top part of a three-position device JSHD4. It has no LEDs and no extra buttons. It must be used with one of the following bottom parts: AB, AD, AH, AJ, AK, AL. Anti-tamper can be chosen as option with all except bottom part AK. Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Sub-Function | No auxiliary button |
|---|---|
| Sub-Function 2 | Holder for Eva (home position) with bottom part AL |
| Maximum Switching Current | Main Circuit 0.02 mA |
| Maximum Switching Voltage | Main Circuit 30 V |
| Number of Contacts CO | 1 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 1 |
| Rated Operational Current DC-12 (Ie) | (24 V) 0.02 A |
| Rated Operational Voltage | 24 V DC |
| Degree of Protection | IP65 |
| Product Name | Three-position handheld device – Top part |
| Product Main Type | JSHD4 |
| Connection Configuration | Depends on bottom part |
| Enclosure Type UL/CSA | 1 |
| Ambient Air Temperature | Operation -10 … +70 °C |
| Material | Handle: Polyamide and Noryl / Rubber: Neoprene |
| Product Net Depth / Length | 340 mm |
| Product Net Height | 157 mm |
| Product Net Width | 56 mm |
| Product Net Weight | 0.139 kg |
| EAN | 7350024459722 |
| Customs Tariff Number | 8536909599 |
| Status Indicator | No |
| Performance Level (PL) | Up to e |
| B10d Value | Operations to Bottom Position 968 000 / Operations to Middle Position 2 million |
| Communication Interface | Contacts |
| Minimum Switching Capacity | Main Circuit 8 mA / 10 VDC |
| Country of origin | Sweden |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
