Description

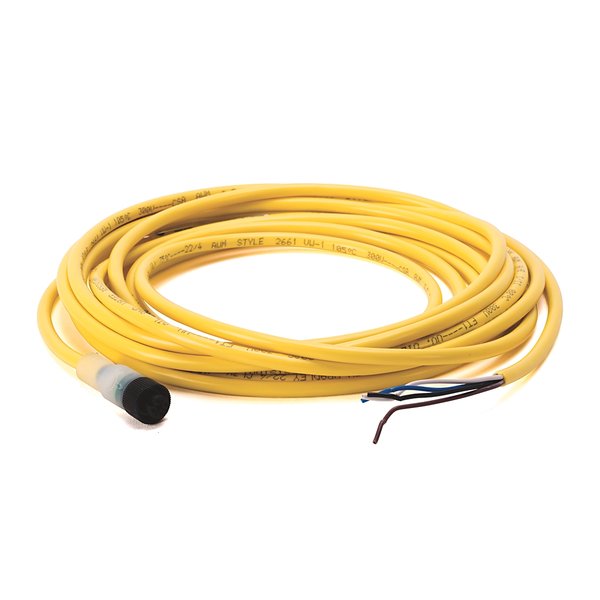

Allen-Bradley 889D-A3UBPG-2 — 889 DC Micro. Manufacturer designation: 889 DC Micro Cable. Patchcord: DC Micro (M12), Female, Straight, LED – NPN, 3-Pin, PUR Cable, Yellow, Unshielded, No Color Code- Patchcord Cable, Pico, Male Snap-on, 2 meter (6.56 feet), 24AWG New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Allen-Bradley |
|---|---|
| Article No. (MPN) | 889D-A3UBPG-2 |
| Product Category | Cables & Wiring |
| Country of Origin | Multiple |
| First End Number of pins | 3-pin |
| Jacket | PUR Cbl, Yellow, UnShld,PUR Cable, Yellow, 24 AWG |
| Second End Conductors | Same as First End |
| Wire Size | 24 AWG |
| Assembly rating | 4A @ 30V |
| Rated current In | 4 A |
| Rated voltage | 30 V |
| Bend radius | 10 x diam |
| Cable diameter | LED: 5 mm (0.2 in), Coiled: 7.1 mm (0.28 in) |
| Cable type | PUR cable, yellow, unshielded, 24 AWG |
| Degree of protection (IP), mounted | IP67 |
| Enclosure type rating | IP67, NEMA 6P |
| First end connector style | Female, straight, LED-NPN |
| Number of pins | 3-pin |
| Operating temperature | -20 °C |
| Cable length | 2000 mm |
| Diameter, approx | Connector: 15 mm (0.59 in) @ straight female |
| Height, approx | Connector: 43 mm (1.7 in) @ right angle female |
| Length, approx | Connector: 42 mm (1.2 in) @ Straight female |
| Material housing | Plastic |
| EAN / GTIN | 889508193359 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Allen-Bradley dealer. All parameters are taken from the official manufacturer documentation.
