Description

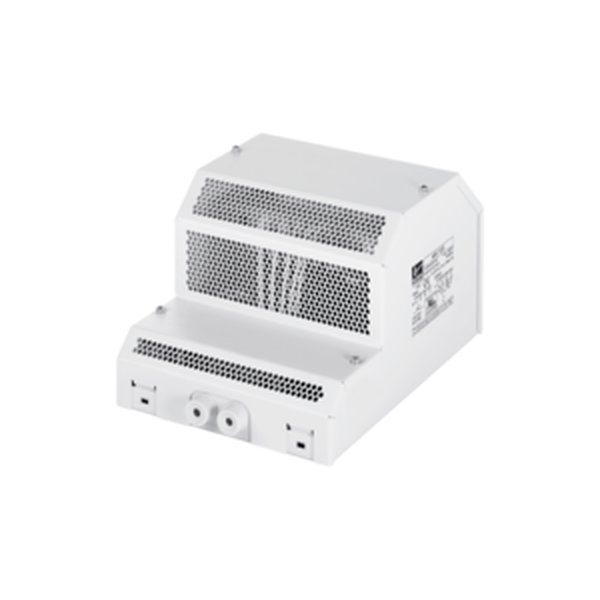

Block AIM 10/5 — Autotransformer. Manufacturer designation: Aim 10/5. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | AIM 10/5 |
| Product Category | Transformers & Reactors |
| Series | AIM |
| Power | 2,400 VA |
| Input | 115 V / 220 V / 230 V / 240 V |
| Frequency range | 50 Hz to 60 Hz |
| No-Load Losses | 18 W |
| EN Insulation class | B (130°C) |
| UL Insulation class | class 130 |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Short circuit proof | conditionally short-circuit proof |
| Switching group | Ia0 |
| Cooling type | AN |
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
| Protection type | IP20 |
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Flat plug connection |
| Width | 200 mm / 7.87 in |
| Height | 166 mm / 6.54 in |
| Depth | 283 mm / 11.14 in |
| Condition | New & original |
| Availability | On request |
Download official Block datasheet (PDF)
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
