Description

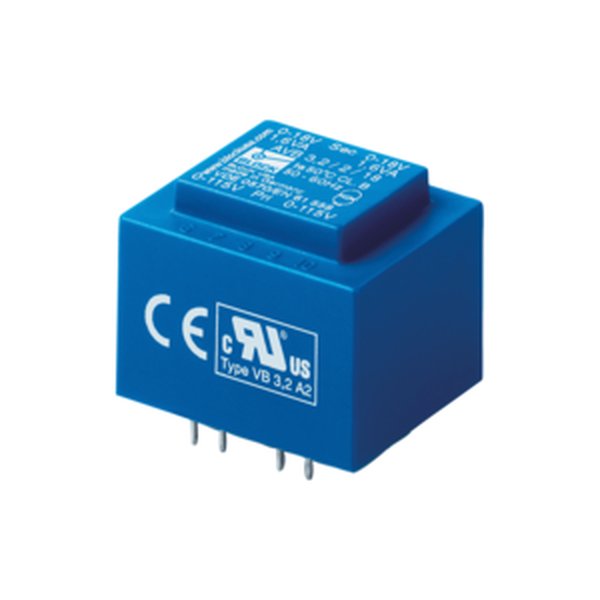

Block AVB 1,5/2/18 — Short circuit proof PCB transformer. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | AVB 1,5/2/18 |
| Product Category | Transformers & Reactors |
| Series | AVB |
| Power | 1.5 VA |
| Input | 2 x 115 V |
| Output | 2 x 18 V • 0.042 Aac |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 0.89 W |
| No-Load Losses | 0.24 W |
| EN Insulation class | B (130°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 57 % |
| Short circuit proof | inherently short-circuit proof |
| Switching group | IIii0 |
| Cooling type | AN |
| Ambient temperature | -20 °C to 70 °C / -4 °F to 158 °F |
| Max. installation height | 2,000 m / 6,562 ft |
| Protection type | IP00 |
| Protection class (prepared) | II |
| Overvoltage category | III |
| Input terminal | Pin |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
