Description

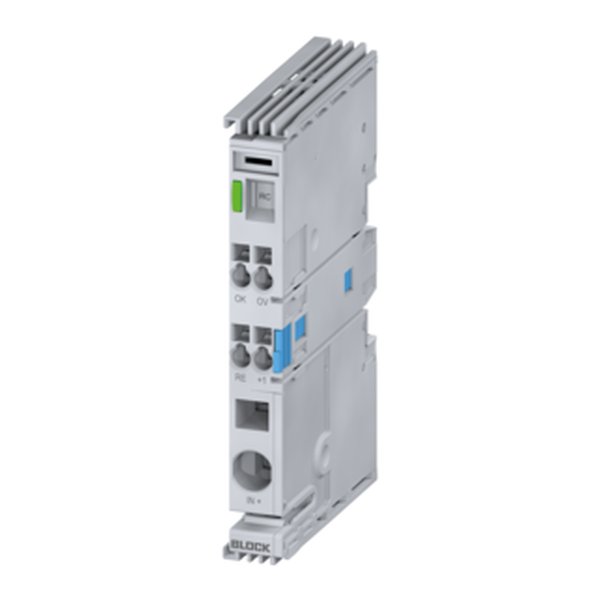

Block EB-IO-LINK1 — Communication module. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | EB-IO-LINK1 |
| Product Category | Transformers & Reactors |
| Series | EB-ACCESSORIE |
| Switch-on threshold | 17.50 V |
| Switch-off threshold | 16.7 V |
| Idle current @ 24 V | 33 mA |
| Max. feedback resistance | 35 Vdc |
| Power losses in stand-by mode | 0.36 W |
| Properties | IO-Link 23 Byte |
| Climate class according to EN 60721 | 3K3 |
| Ambient temperature | -25 °C to 70 °C / -13 °F to 158 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 5 % to 96 % |
| Cooling type | natural convection |
| Width | 12 mm / 0.47 in |
| Height | 99 mm / 3.9 in |
| Depth | 60 mm / 2.36 in |
| Weight | 0.04 kg / 0.088 lbs |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
