Description

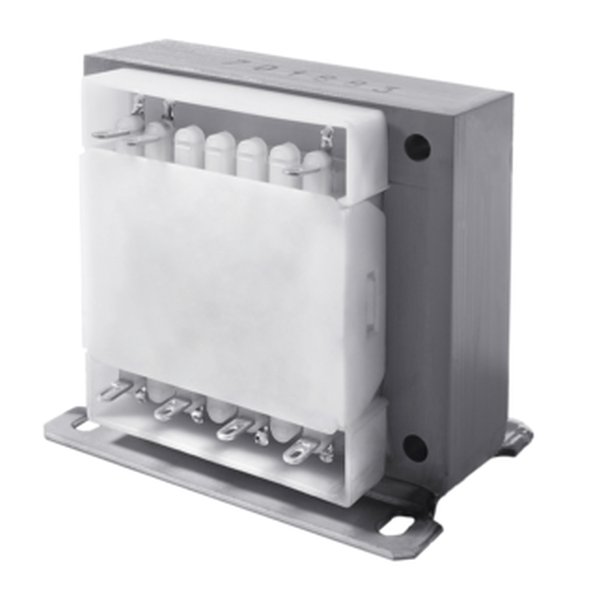

Block EL 13/9 — Safety isolating transformer. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | EL 13/9 |
| Product Category | Transformers & Reactors |
| Series | EL |
| Power | 13 VA |
| Input | 230 V |
| Output | 2 x 9 V • 0.72 Aac |
| Frequency range | 50 Hz to 60 Hz |
| No-Load Losses | 2.2 W |
| EN Insulation class | E (120°C) |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 67 % |
| Short circuit proof | not short-circuit proof |
| Switching group | Iii0 |
| Cooling type | AN |
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
| Protection type | IP00 |
| Protection class (prepared) | II |
| Overvoltage category | III |
| Input terminal | Soldering eye |
| Output terminal | Soldering eye |
| Width | 40 mm / 1.57 in |
| Condition | New & original |
| Availability | On request |
Download official Block datasheet (PDF)
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
