Description

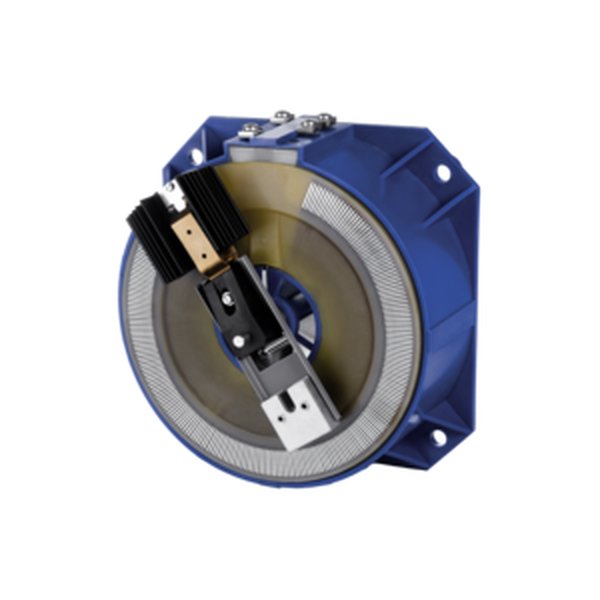

Block ESS 102 — Variable transformer. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | ESS 102 |
| Product Category | Transformers & Reactors |
| Series | ESS |
| Power | 500 VA |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | B (130°C) |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Short circuit proof | not short-circuit proof |
| Switching group | Ia0 |
| Cooling type | AN |
| Ambient temperature | -20 °C to 45 °C / -4 °F to 113 °F |
| Max. installation height | 2,000 m / 6,562 ft |
| Protection type | IP00 |
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Width | 116 mm / 4.57 in |
| Height | 125 mm / 4.92 in |
| Depth | 137 mm / 5.39 in |
| Weight | 2.493 kg / 5.496 lbs |
| Low Voltage Directive | EN 61558-2-13 |
| RoHS compliant | EN IEC 63000 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
