Description

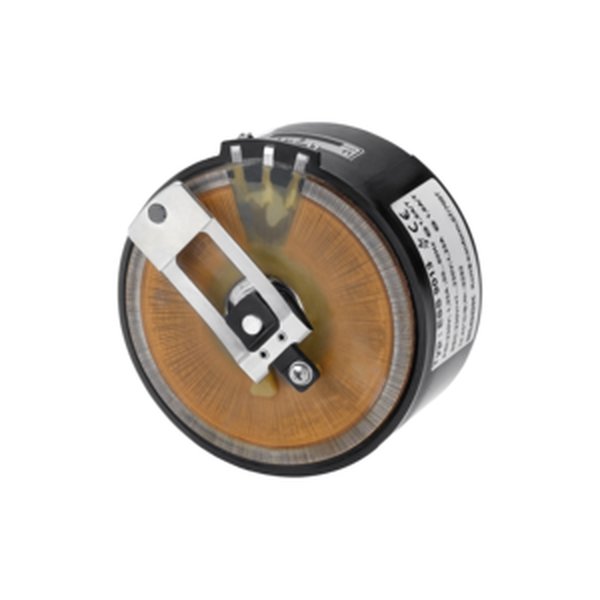

Block ESS 9013 — Variable transformer. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | ESS 9013 |
| Product Category | Transformers & Reactors |
| Series | ESS |
| Power | 287.5 VA |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | B (130°C) |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Short circuit proof | not short-circuit proof |
| Cooling type | AN |
| Ambient temperature | 0 °C to 45 °C / 32 °F to 113 °F |
| Max. installation height | 2,000 m / 6,562 ft |
| Protection type | IP00 |
| Input terminal | Soldering eye |
| Output terminal | Soldering eye |
| Width | 98 mm / 3.86 in |
| Height | 87 mm / 3.43 in |
| Depth | 94.5 mm / 3.72 in |
| Weight | 1.4 kg / 3.086 lbs |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
