Description

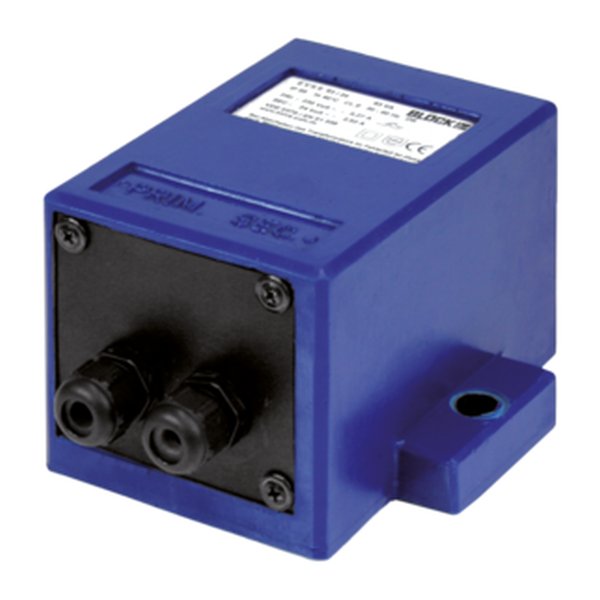

Block EVKE 250/24 — Safety isolating transformer. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | EVKE 250/24 |
| Product Category | Transformers & Reactors |
| Series | EVKE |
| Power | 250 VA |
| Input | 230 V |
| Output | 24 V • 10.4 Aac |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | A (105°C) |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Short circuit proof | conditionally short-circuit proof |
| Switching group | Ii0 |
| Cooling type | AN |
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
| Protection type | IP65 |
| Protection class (prepared) | II |
| Overvoltage category | III |
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Width | 150 mm / 5.91 in |
| Height | 105 mm / 4.13 in |
| Depth | 190 mm / 7.48 in |
| Condition | New & original |
| Availability | On request |
Download official Block datasheet (PDF)
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
