Description

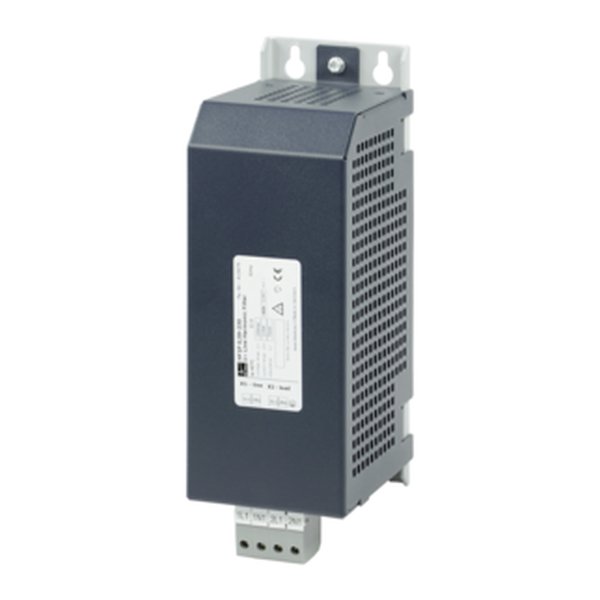

Block HF1P 0,59-230 — Harmonic filter. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | HF1P 0,59-230 |
| Product Category | Transformers & Reactors |
| Series | HF1P |
| Inductance | 75 mH |
| Rated current | 2.5 Aac |
| Linear current | 3.75 Aac |
| Rated voltage range | 207 V to 253 V |
| Rated voltage | 230 V |
| Frequency range | 50 Hz |
| Motor or converter power | 0.6 kW / 0.8 HP |
| EN Insulation class | H (180°C) |
| UL Insulation class | class 180 |
| Duty Cycle | 100 % |
| Power loss | 27.00 W |
| Wire material | Copper |
| Cooling type | AN |
| Switching group | Ia0 |
| Ambient temperature | -10 °C to 40 °C / 14 °F to 104 °F |
| Max. installation height | 1,000 m / 3,281 ft |
| Protection type | IP20 |
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Bolt connection |
| Condition | New & original |
| Availability | On request |
Download official Block datasheet (PDF)
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
