Description

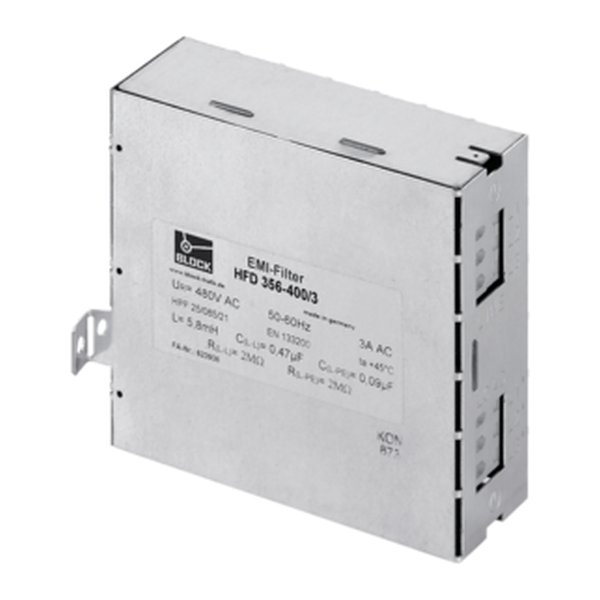

Block HFD 356-400/3. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | HFD 356-400/3 |
| Product Category | Transformers & Reactors |
| Series | HFD 356 |
| Inductance | 3x 5.8 mH |
| Rated current | 3x 3 Aac |
| Rated voltage range | 0 V to 480 V |
| Rated voltage | 480 V |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | A (105°C) |
| Duty Cycle | 100 % |
| Power loss | 1.50 W |
| Wire material | Copper |
| Cooling type | AN |
| Ambient temperature | -25 °C to 45 °C / -13 °F to 113 °F |
| Max. installation height | 1,000 m / 3,281 ft |
| Protection type | IP20 |
| Input terminal | Spring cage terminal |
| Output terminal | Spring cage terminal |
| Terminal PE | Flat plug connection |
| Width | 45 mm / 1.77 in |
| Height | 110 mm / 4.33 in |
| Depth | 127.5 mm / 5.02 in |
| Weight | 0.54 kg / 1.19 lbs |
| Condition | New & original |
| Availability | On request |
Download official Block datasheet (PDF)
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
